Rear Door Alignment - Crew Cab

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Inspection

NOTE: LH shown, RH similar.

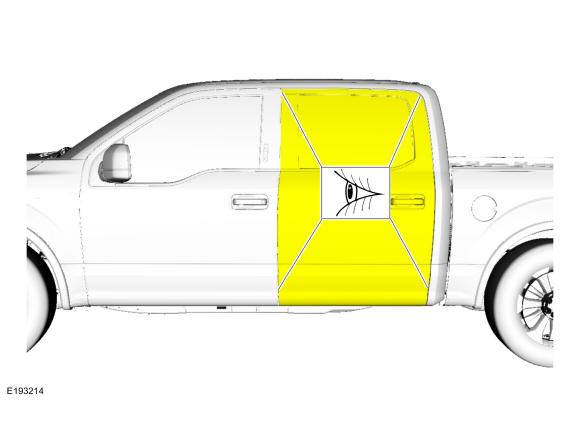

  1. Inspect the rear door-to-body dimensions. Refer to: Body and Frame .
GFD410479Courtesy of FORD MOTOR COMPANY

Adjustment

All alignments

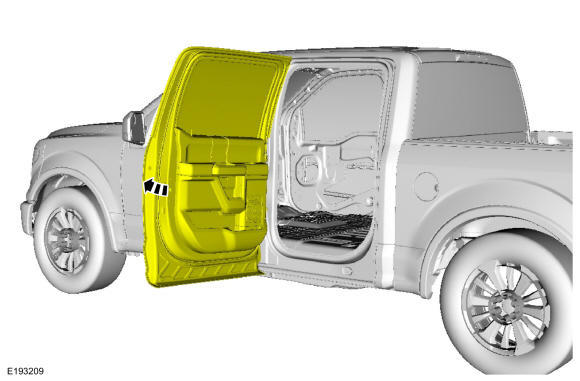

  1. Open the rear door.
    GFD410480Courtesy of FORD MOTOR COMPANY

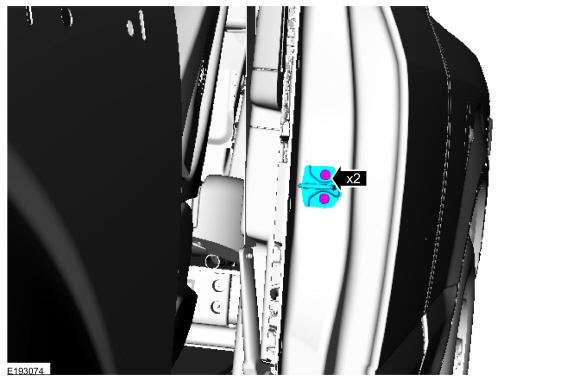

  2. Remove the bolts and the striker assembly.
    GFD410481Courtesy of FORD MOTOR COMPANY

    Rear door in and out, up and down alignment

  3. Loosen the bolts enough to permit movement of the door.
    GFD410444Courtesy of FORD MOTOR COMPANY
  4. Adjust the door to specification. Refer to: Body and Frame .
    GFD410445Courtesy of FORD MOTOR COMPANY
  5. Tighten the bolts.

    Torque: 41 lb.ft (55 Nm)

    GFD410446Courtesy of FORD MOTOR COMPANY

    Rear door fore, aft and tilt alignment

  6. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
  7. Remove the B-pillar lower trim panel. Refer to: B-PILLAR TRIM PANEL - CREW CAB

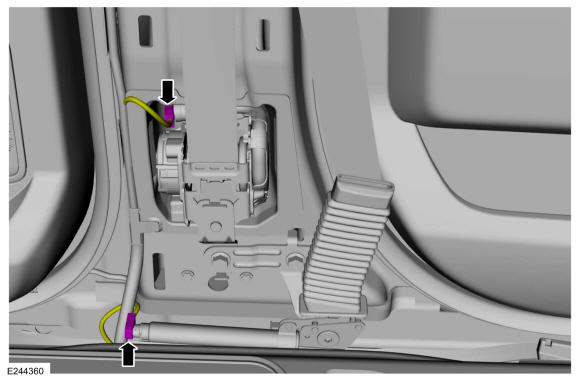

    LH front seatbelt retractor and pretensioner

  8. Disconnect the front seatbelt retractor and pretensioner electrical connectors.
    GFD410482Courtesy of FORD MOTOR COMPANY

    RH front seatbelt retractor and pretensioner

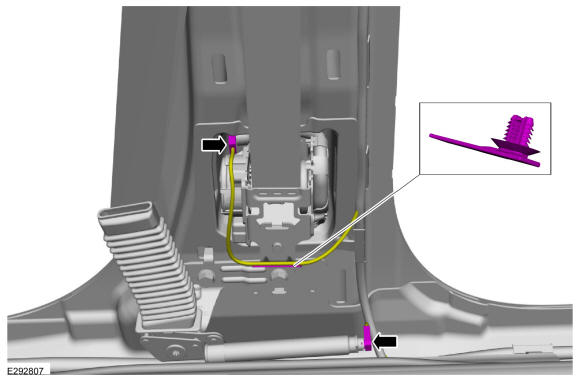

  9. Disconnect the front seatbelt retractor and pretensioner electrical connectors and detach the wiring harness retainer.
    GFD410483Courtesy of FORD MOTOR COMPANY

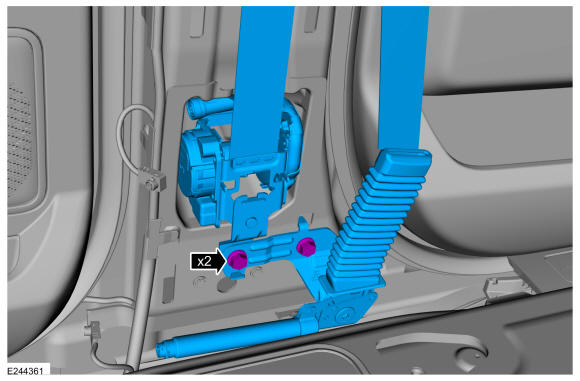

  10. Remove the bolts and the front seatbelt retractor and pretensioner.

    Torque: 30 lb.ft (40 Nm)

    GFD410484Courtesy of FORD MOTOR COMPANY

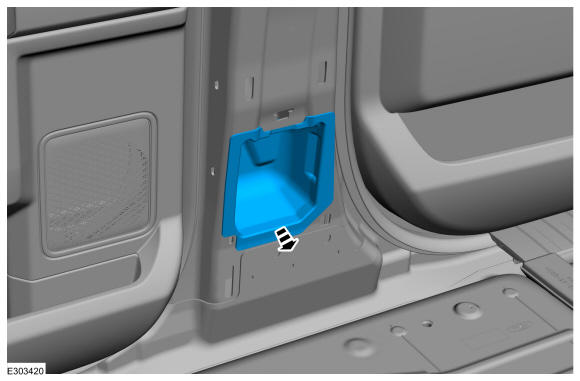

  11. Remove the body opening foam cover to access the door hinge nuts.
    GFD410485Courtesy of FORD MOTOR COMPANY

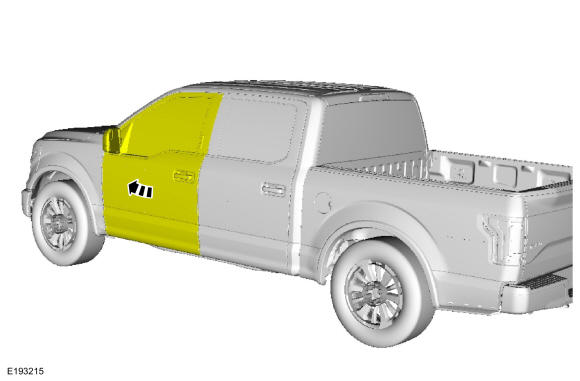

  12. Open the front door.
    GFD410486Courtesy of FORD MOTOR COMPANY
  13. Open the rear door.
    GFD410487Courtesy of FORD MOTOR COMPANY

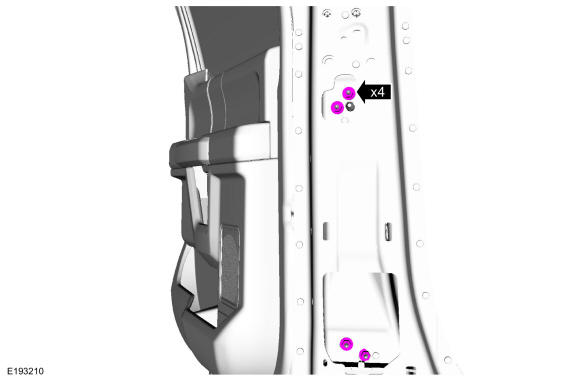

  14. Loosen the nuts enough to permit movement of the door.
    GFD410488Courtesy of FORD MOTOR COMPANY
  15. Loosen the bolt enough to permit movement of the door.
    GFD410489Courtesy of FORD MOTOR COMPANY

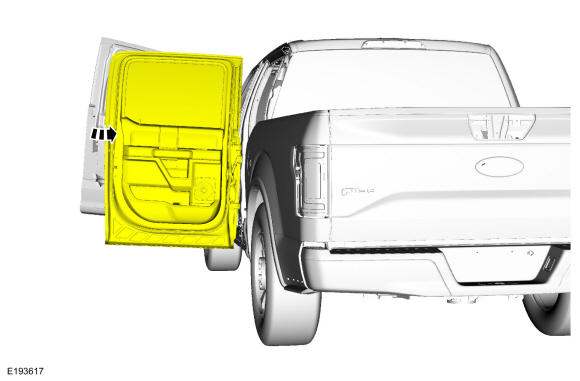

  16. Carefully close the rear door.
    GFD410490Courtesy of FORD MOTOR COMPANY
  17. Carefully close the front door.
    GFD410491Courtesy of FORD MOTOR COMPANY

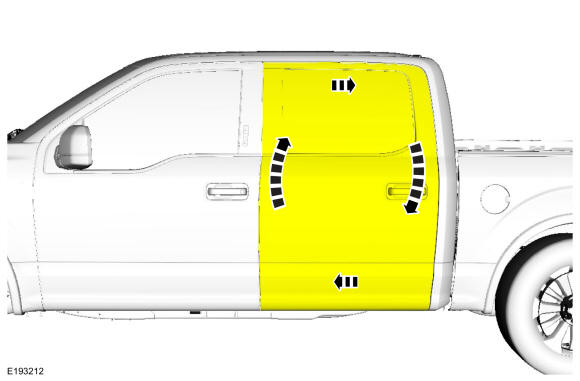

  18. Adjust the door to specification. Refer to: Body and Frame .
    GFD410492Courtesy of FORD MOTOR COMPANY
  19. Carefully open the front door.
    GFD410486Courtesy of FORD MOTOR COMPANY
  20. Carefully open the rear door.
    GFD410487Courtesy of FORD MOTOR COMPANY
  21. Tighten the nuts.

    Torque: 22 lb.ft (30 Nm)

    GFD410493Courtesy of FORD MOTOR COMPANY

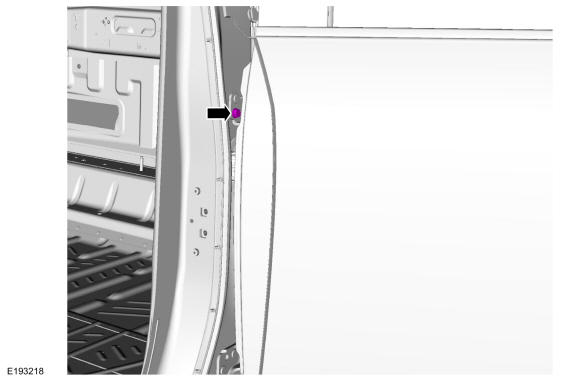

  22. Tighten the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD410494Courtesy of FORD MOTOR COMPANY

    All alignments

  23. Install the striker assembly.

    Torque: 18 lb.ft (25 Nm)

    GFD410481Courtesy of FORD MOTOR COMPANY
  24. Close the rear door.
    GFD410490Courtesy of FORD MOTOR COMPANY
  25. Close the front door.
    GFD410491Courtesy of FORD MOTOR COMPANY
  26. Inspect the body-to-rear door dimensions. Refer to: Body and Frame .
    GFD410479Courtesy of FORD MOTOR COMPANY
  27. Install the removed components.

    • During installation, make sure the seat belt webbing is not twisted and the seat belts and buckles are accessible to the occupants.

  28. Check the seatbelt system for correct operation. Refer to: Seatbelt Systems .
  29. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
