Front Door Alignment - Crew Cab Regular Cab
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Inspection
NOTE:
LH shown, RH similar.
NOTE:
Regular Cab shown, Crew Cab similar.

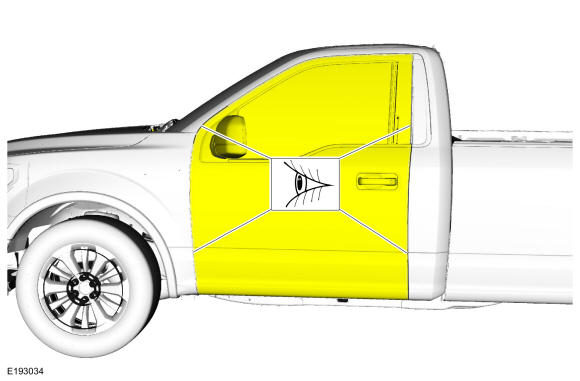

- Inspect the front door-to-body dimensions. Refer to: Body and Frame .
Adjustment
All alignments
- Open the door.

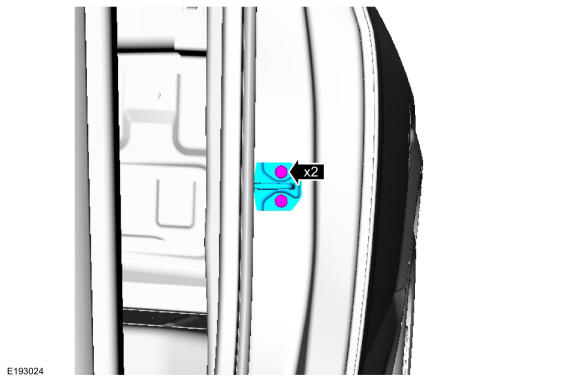

- Remove the bolts and the striker assembly.
Front door in and out, up and down alignment

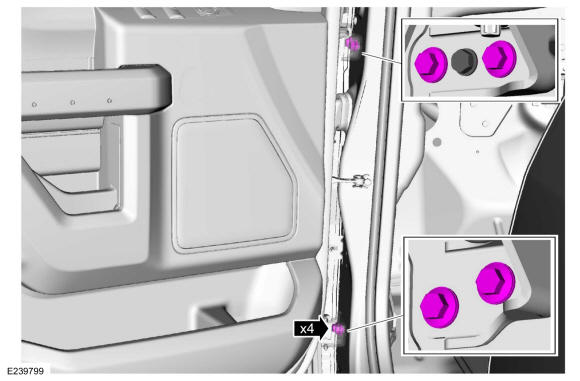

- Loosen the bolts enough to permit movement of the door.
- Adjust the door to specification. Refer to: Body and Frame
.
- Tighten the bolts.
Torque: 41 lb.ft (55 Nm)
Front door fore, aft and tilt alignment

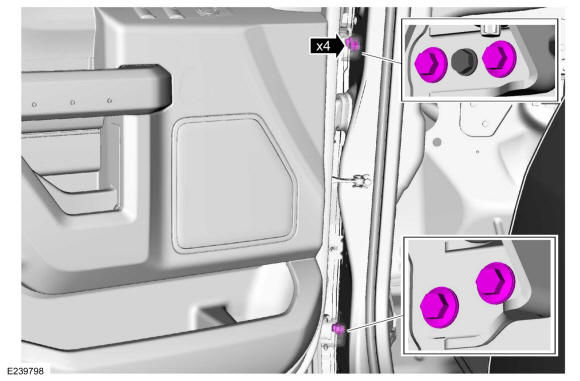

- Loosen the bolts enough to permit movement of the door.
- Carefully close the door.
- Adjust the door to specification. Refer to: Body and Frame
.
- Carefully open the door.
-
NOTE: Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas below.
Tighten the bolts.
Torque: 1.: 20 lb.ft (27.5 Nm)
All alignments
- Install the striker assembly.
Torque: 18 lb.ft (25 Nm)
- Close the door.
- Inspect the body-to-front door dimensions. Refer to: Body and Frame .
