Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details

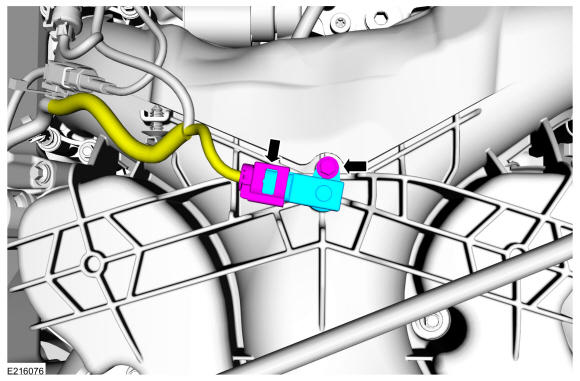

  1. Disconnect the MAP sensor electrical connector. Remove the bolt and the MAP sensor.

    Torque: 44 lb.in (5 Nm)

GFD203961Courtesy of FORD MOTOR COMPANY
