Fuel Volume Control Valve: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the lower intake manifold. Refer to: Lower Intake Manifold .

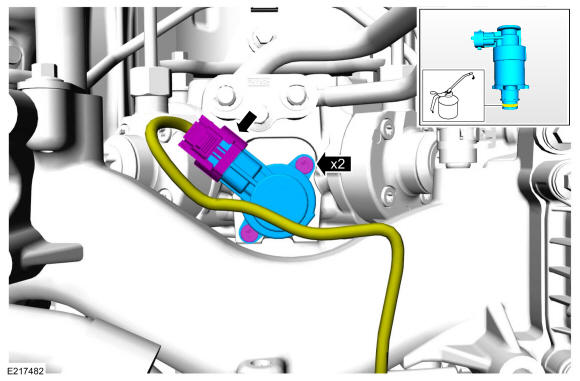

- Disconnect the electrical connector and remove the fuel volume control valve.
Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)
Torque:
Stage 1: 27 lb.in (3 Nm)
Stage 2: 62 lb.in (7 Nm)
