Fuel Pressure and Temperature Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

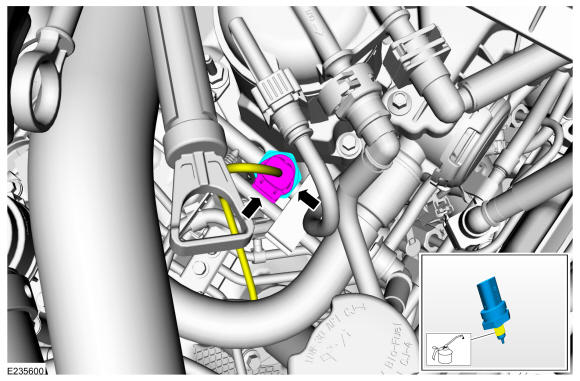

- Disconnect the electrical connector and remove the fuel pressure and temperature sensor.
Material: Motorcraft ® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSD (WSS-M2C171-E)
Torque:
27 lb.ft (37 Nm)
 Courtesy of FORD MOTOR COMPANY
|
