Fuel Pressure Control Valve: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the LH fender splash shield. Refer to: Fender Splash Shield .
  2. Remove the retainers and the engine sound shield.
    GFD203541Courtesy of FORD MOTOR COMPANY

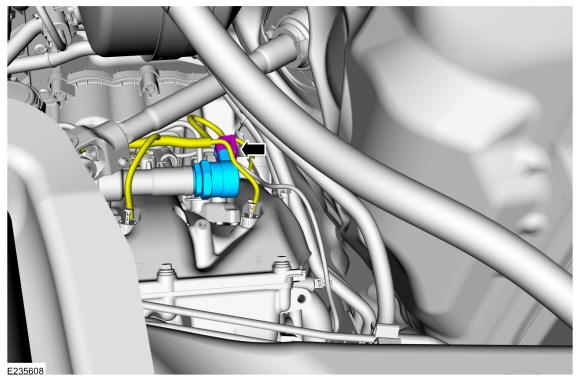

  3. Disconnect the electrical connector and remove the fuel pressure control valve
GFD203957Courtesy of FORD MOTOR COMPANY
