Engine Oil Temperature Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

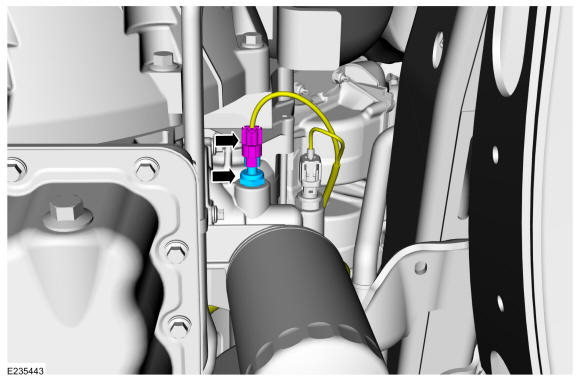

Disconnect the electrical connector and remove the engine oil temperature sensor.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
