Rear Bumper: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer toOEM Color Coding
- Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

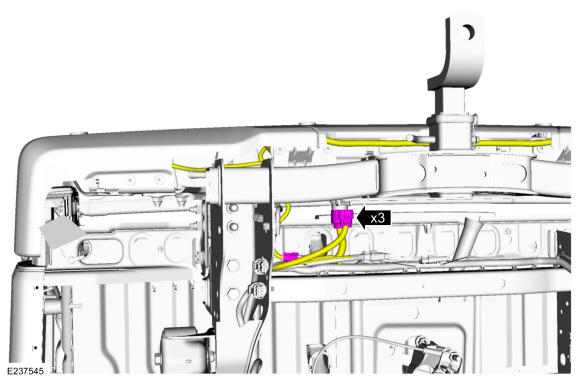

- Disconnect the electrical connectors.

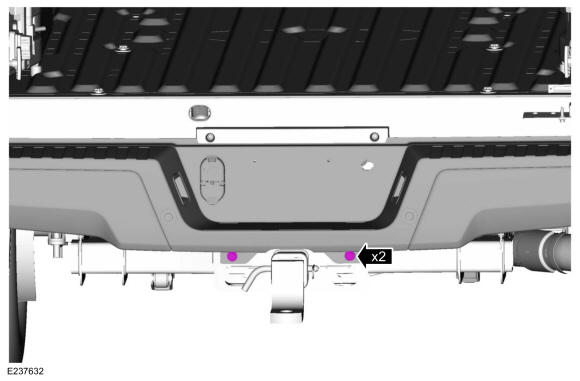

- Remove the rear bumper center bracket bolts.
Torque: 26 lb.ft (35 Nm)

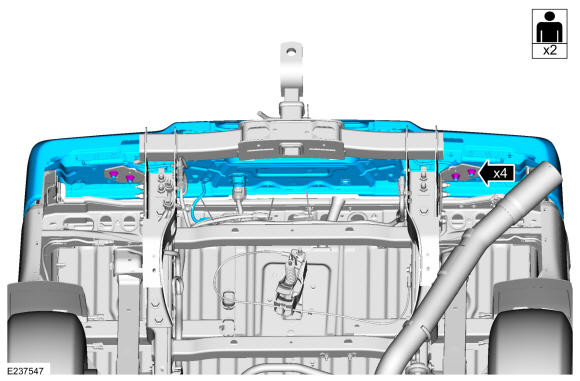

- With the help of an assistant, remove the nuts and the rear bumper assembly.
Torque: 86 lb.ft (116 Nm)
