Front Bumper: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer toOEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front wheels and tires. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
-
NOTE: On both sides.

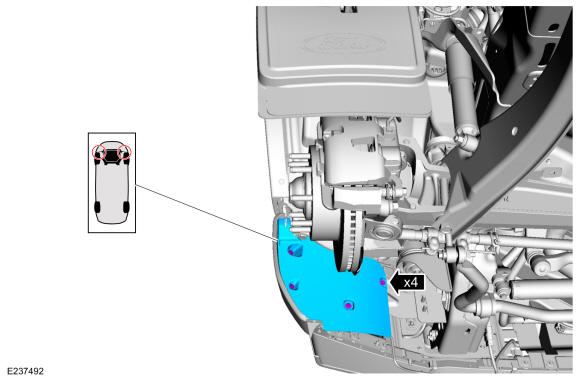

Remove the screws and the front fender filler panel.
Torque: 15 lb.in (1.7 Nm)
-
NOTE: On both sides.

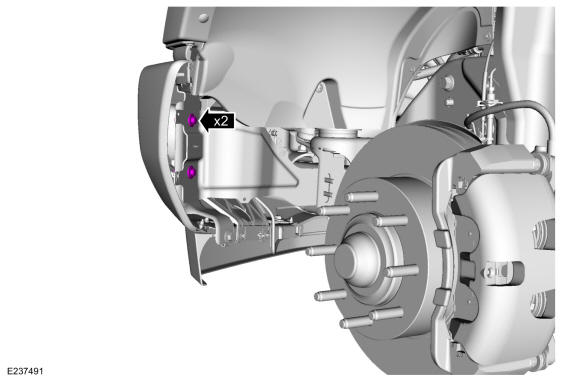

Remove the bumper extension bolts.
Torque: 35 lb.ft (47.6 Nm)

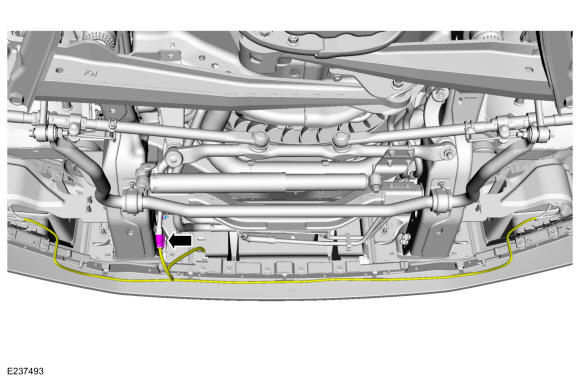

- If equipped. Disconnect the engine block heater wiring harness retainer.

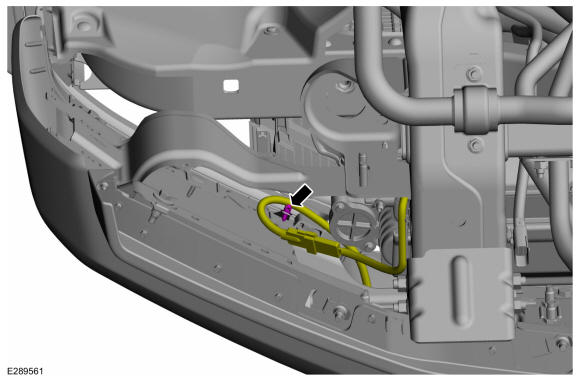

- If equipped. Disconnect the front bumper harness electrical connector.
- If equipped, remove the CCM. Refer to: Cruise Control Module (CCM) .

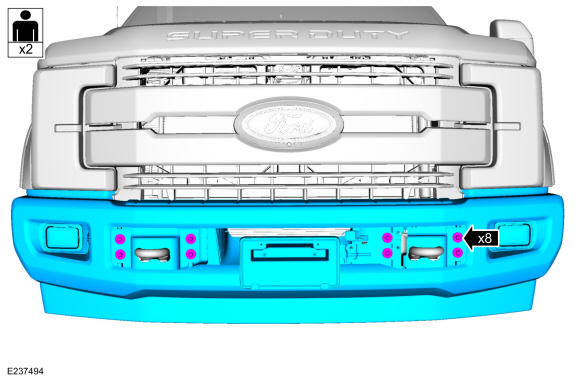

- With the help of an assistant, remove the bolts and the front bumper assembly.
Torque: 76 lb.ft (103 Nm)
