Front Seatbelt Retractor and Pretensioner - Regular Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the B-pillar lower trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .
Remove the D-ring cover.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the pretensioner electrical connectors and position aside.

Courtesy of FORD MOTOR COMPANY
Remove the weather seal.

Courtesy of FORD MOTOR COMPANY

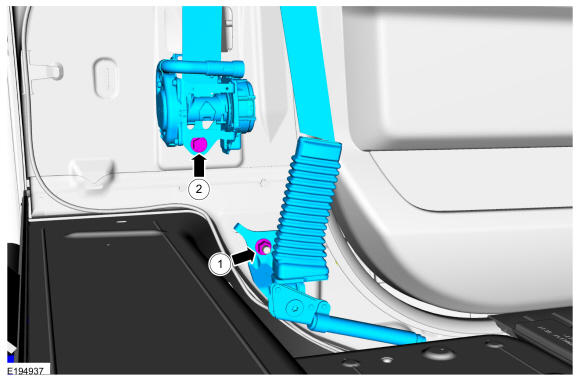

Remove the seatbelt retractor and anchor pretensioner.
1. Remove the nut.
  Torque: 30 lb.ft (40 Nm)
2. Remove the bolt and the seatbelt retractor and anchor pretensioner.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
