Front Seatbelt Retractor and Pretensioner - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
-
WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Remove the B-pillar lower trim panel. Refer to: B-Pillar Trim Panel - Crew Cab .

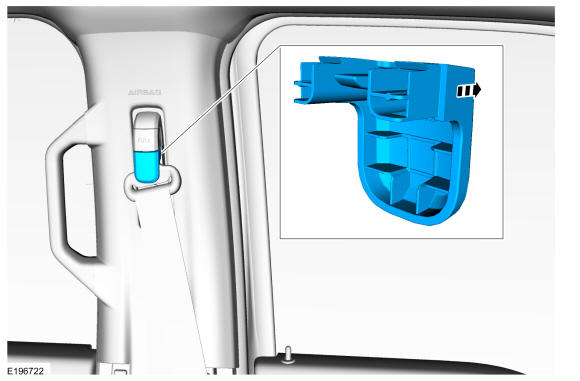

- Remove the D-ring cover.

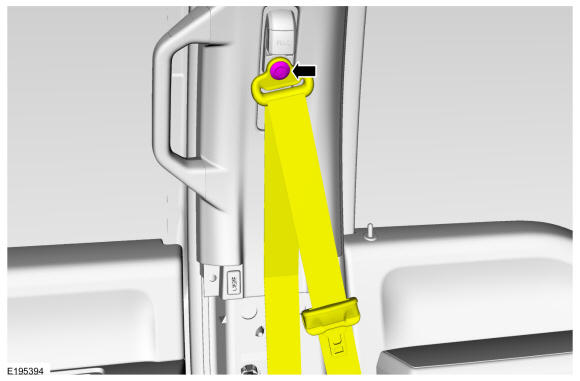

- Remove the bolt and position the seatbelt aside.
Torque: 30 lb.ft (40 Nm)

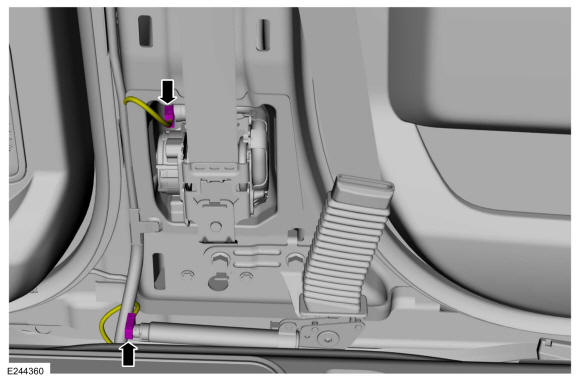

LH front seatbelt retractor and pretensioner
- Disconnect the front seatbelt retractor and pretensioner electrical connectors.

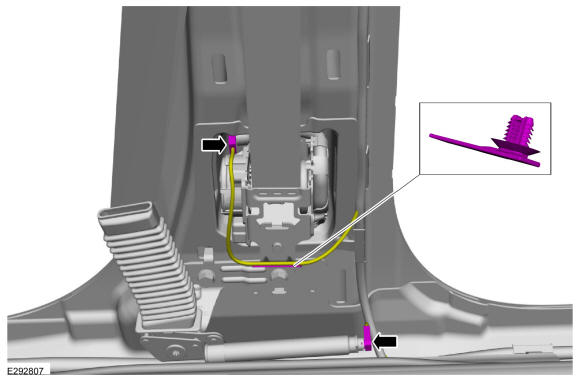

RH front seatbelt retractor and pretensioner
- Disconnect the front seatbelt retractor and pretensioner electrical connectors and detach the wiring harness retainer.
All front seatbelt retractor and pretensioners
- Remove the bolts and the front seatbelt retractor and pretensioner.
Torque: 30 lb.ft (40 Nm)
