Front Center Seatbelt Retractor - Crew Cab Super Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front center seat. Refer to: Front Center Seat .
- Remove the front center seat backrest. Refer to: Front Center Seat Backrest - Crew Cab/Super Cab .
- Remove the front center seat backrest cover. Refer to: Front Center Seat Backrest Cover - Crew Cab/Super Cab .

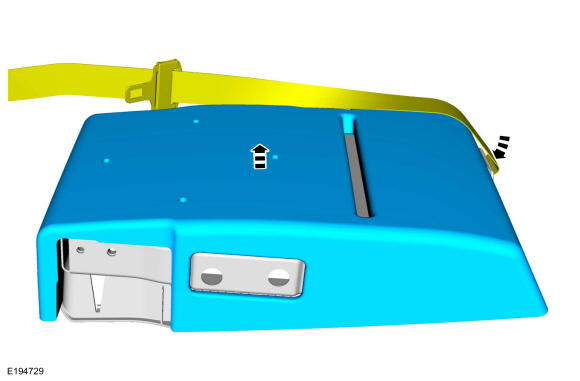

- Remove the backrest foam while feeding the seatbelt through the foam opening.

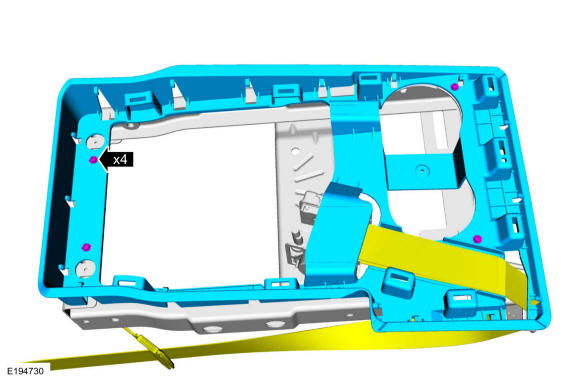

- Remove the screws and the backrest/armrest bracket while feeding the seatbelt through the bracket opening.
- Remove the bolt and the seatbelt retractor.
Torque: 30 lb.ft (40 Nm)
