Front Center Seatbelt Buckle - Regular Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front center seat. Refer to: Front Center Seat .
  2. Lift the seat cushion.

    1. Release the seat cushion latch.
    2. Lift the seat cushion.

    GFD410818Courtesy of FORD MOTOR COMPANY
  3. Remove the cup holder.
    GFD410819Courtesy of FORD MOTOR COMPANY
  4. Remove the screws and the seat storage tray.
    GFD410820Courtesy of FORD MOTOR COMPANY
  5. Lower the seat cushion.
    GFD410821Courtesy of FORD MOTOR COMPANY
  6. Release the seat latch and fold the seat backrest down.
    GFD410822Courtesy of FORD MOTOR COMPANY

    RH buckle

  7. Remove the backrest latch cover.
    GFD410823Courtesy of FORD MOTOR COMPANY
  8. Remove the screws, release the retaining clip and remove the RH side shield.
    GFD410824Courtesy of FORD MOTOR COMPANY

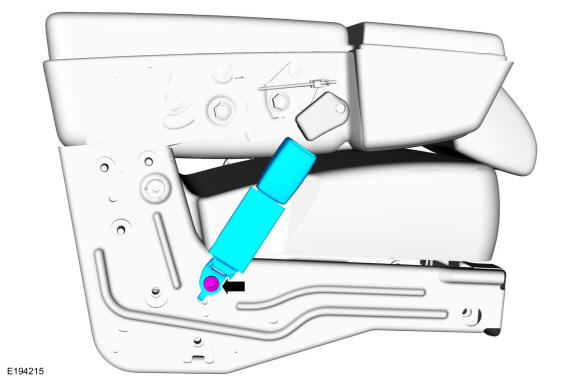

  9. Remove the bolt and the seatbelt buckle.

    Torque: 30 lb.ft (40 Nm)

    GFD411382Courtesy of FORD MOTOR COMPANY

    LH detachable anchor

  10. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD410825Courtesy of FORD MOTOR COMPANY

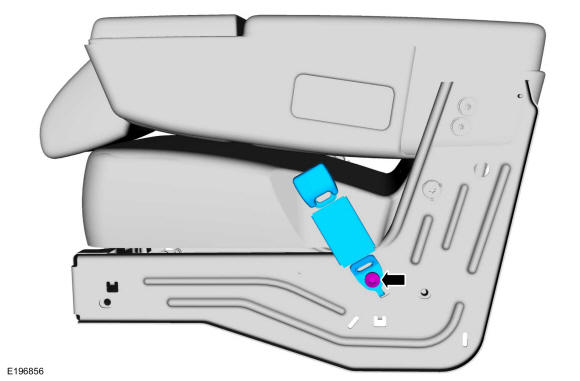

  11. Remove the bolt and the detachable seatbelt anchor.

    Torque: 30 lb.ft (40 Nm)

GFD411383Courtesy of FORD MOTOR COMPANY
