Front Center Seatbelt Buckle - Crew Cab Super Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front center seat. Refer to: Front Center Seat .
Lift the seat cushion.
1. Release the seat cushion latch.
2. Lift the seat cushion.
Courtesy of FORD MOTOR COMPANY

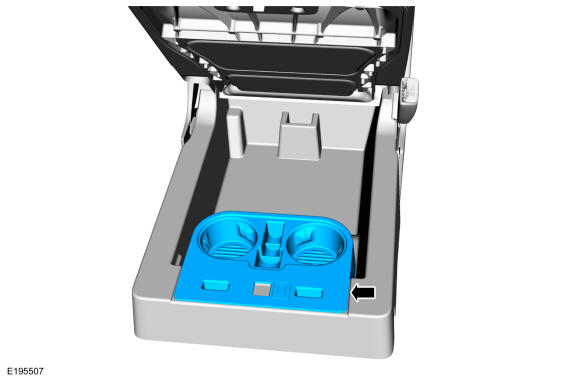

Remove the cup holder.

Courtesy of FORD MOTOR COMPANY
Remove the screws and the seat storage tray.

Courtesy of FORD MOTOR COMPANY

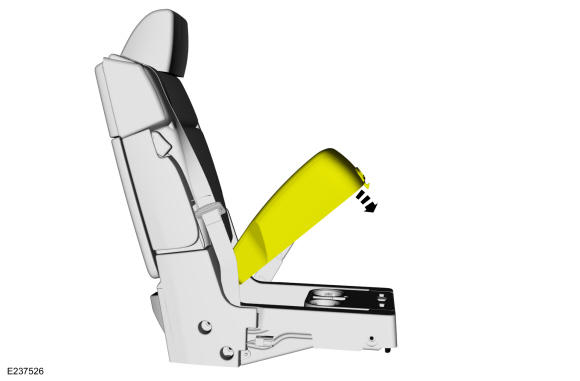

Lower the seat cushion.

Courtesy of FORD MOTOR COMPANY

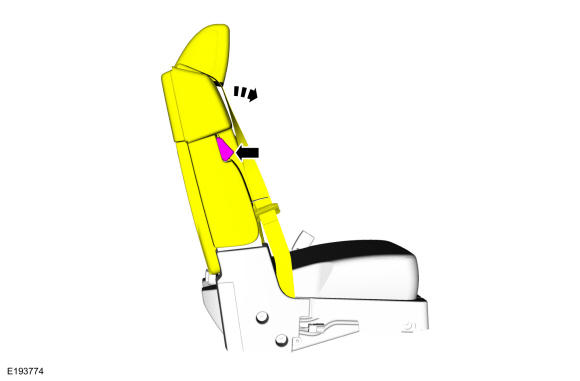

Release the seat latch and fold the seat backrest down.

Courtesy of FORD MOTOR COMPANY
Remove the rear cup holder assembly.
1. Release the rear cup holder assembly retainers.
2. Disconnect the auxiliary power point electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clips and remove the LH side shield.

Courtesy of FORD MOTOR COMPANY

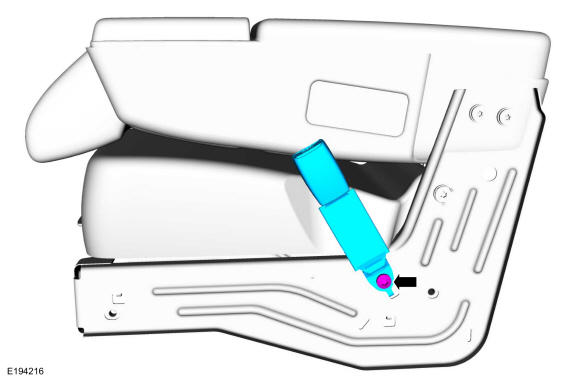

Remove the bolt and the seatbelt buckle.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
