Child Safety Seat Tether Anchor - Crew Cab Super Cab: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Super Cab

NOTE: During installation, the striker should be in its lowest position for the latch to engage.

Lower the LH backrest.
1. Pull the backrest release strap and release the latch from the striker.
2. Lower the backrest.
Courtesy of FORD MOTOR COMPANY

Crew Cab
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

NOTE: During installation, the striker should be in its lowest position for the latch to engage.

Fold the LH rear seat backrest down.
1. Raise the seat cushion.
2. Release the seat latch.
3. Fold the seat backrest down.
Courtesy of FORD MOTOR COMPANY

Super Cab and Crew Cab
Pull the backrest release strap and fold the RH rear seat backrest down.

Courtesy of FORD MOTOR COMPANY

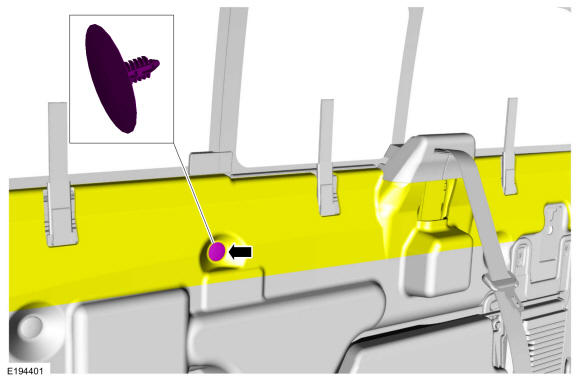

Remove the pin-type retainer and position the load space trim panel aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The load space trim panel has been removed for clarity.

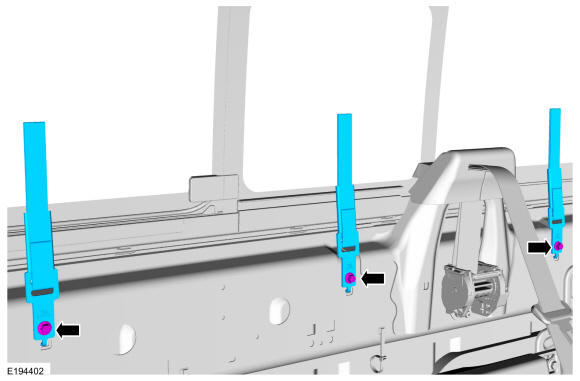

Remove the bolt(s) and the child safety seat tether anchor(s).

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
