Seatbelt Twisted at the Seatbelt Guide
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Adjustment
NOTE:

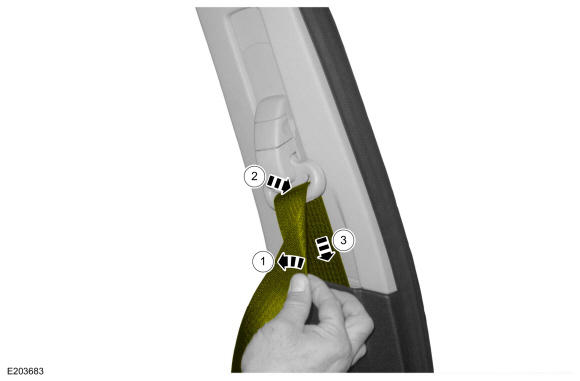

Typical D-ring shown, others similar.
- If required, remove the necessary trim panel(s).
-
- Fold the seatbelt as indicated.
- Feed the folded portion of the seatbelt into the D-ring.
- Pull the seatbelt through the D-ring to remove the twist in the seatbelt.
