Seatbelt Tongue Rotated On Belt

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Adjustment

NOTE: Typical seatbelt tongue shown, others similar.

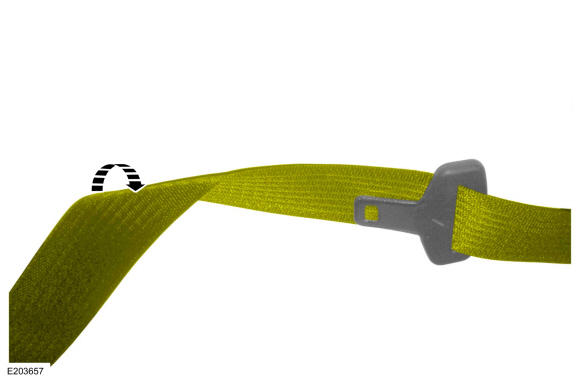

Fold the seatbelt as indicated.

Courtesy of FORD MOTOR COMPANY
1. Feed the folded portion of the seatbelt into the seatbelt tongue.
2. Pull the seatbelt through the seatbelt tongue to remove the twist in the seatbelt.

Courtesy of FORD MOTOR COMPANY
