Rear Door Window Glass - Super Cab, Vehicles With: Rear Power Windows: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear door window control switch. Refer to: Rear Door Window Control Switch - Super Cab, Vehicles With: Rear Power Windows .

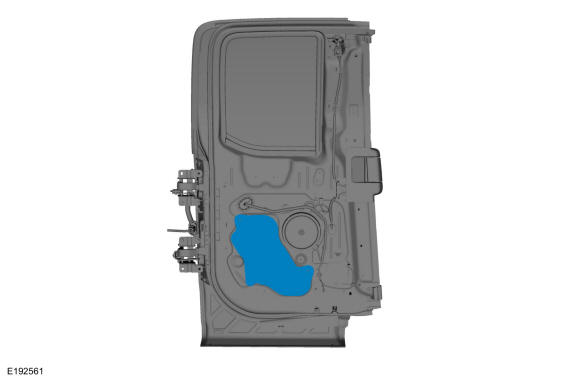

- Remove the watershield.

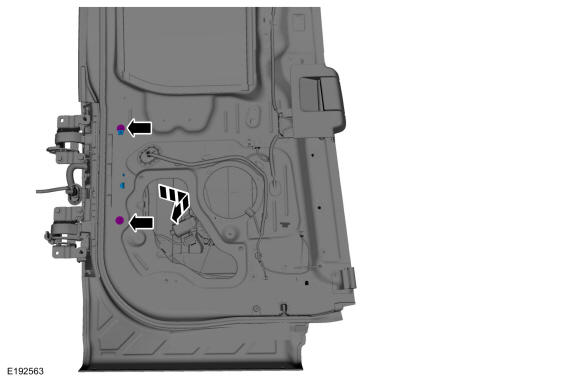

- Remove the aft rear door glass run and bracket.
Torque: 93 lb.in (10.5 Nm)
-
NOTE: For non-functional rear door window regulators and motors with the window in the 40 mm open to full closed position, cut the rear door window regulator cables to allow window movement.

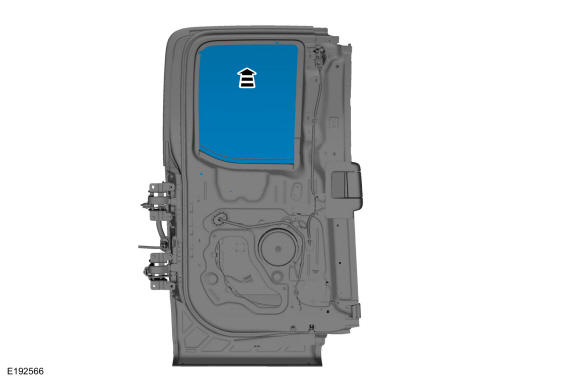

Lower the rear door window glass.
- Connect the rear door window control switch.
- Lower the rear door window glass.

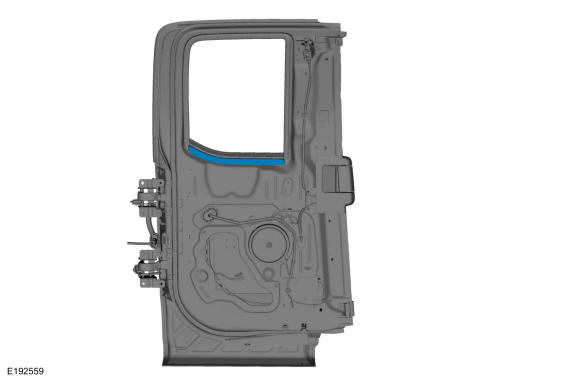

- Remove the inner belt moulding.
- Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .

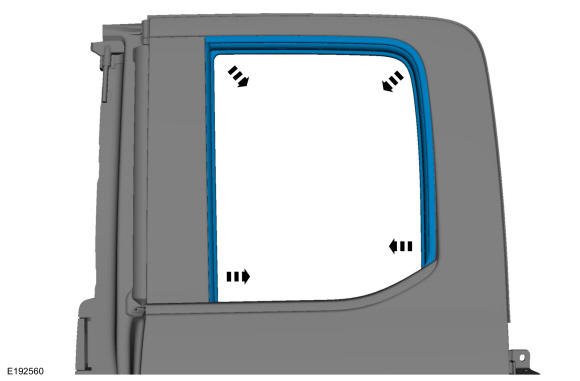

- Remove the rear door glass top run.

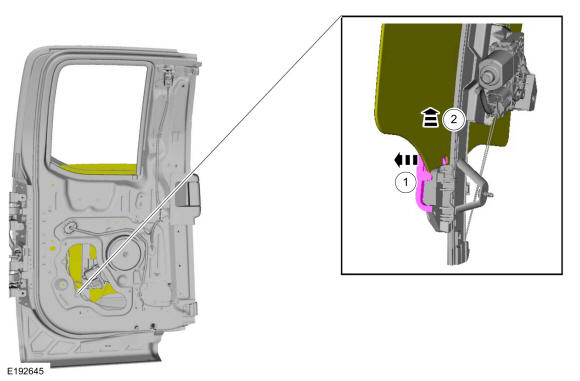

- Release the rear door window glass.
- Pry out the rear door window glass clip.
- Release the rear door window glass.
- Remove the rear door window glass.
