Rear Door Window Glass - Crew Cab: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
NOTE:
LH side shown, RH side similar.
- Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .
- Remove the rear door trim panel. Refer to: Rear Door Trim Panel - Crew Cab .

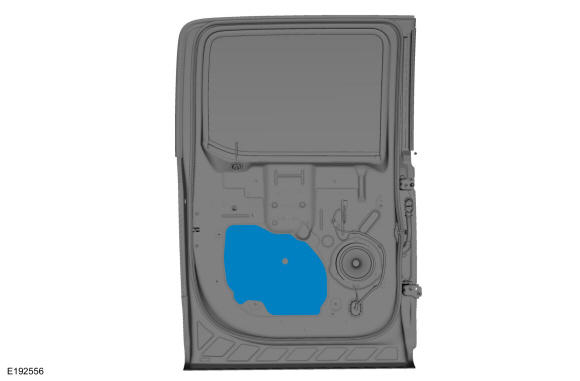

- Remove the watershield.
Vehicles with manual windows
- Lower the rear door window glass.

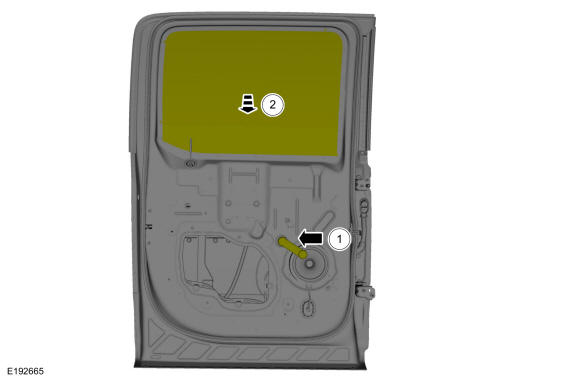

- Partially install the window regulator handle.
- Lower the rear door window glass.
Vehicles with power windows

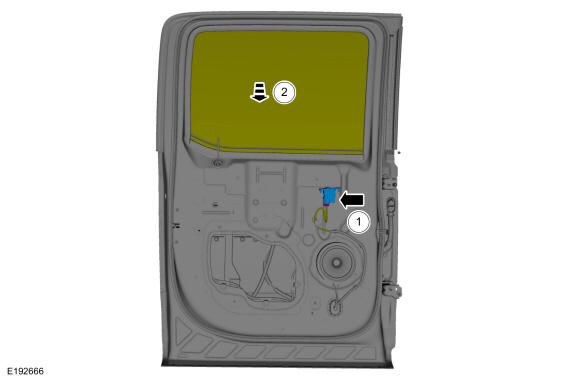

- Remove the rear door window control switch
- Lower the rear door window glass.
- Install the rear door window control switch.
- Lower the rear door window glass.
All vehicles

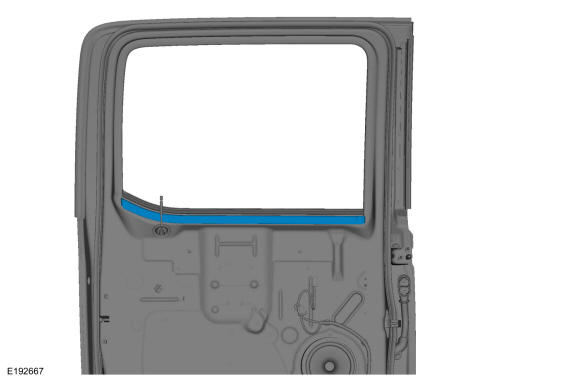

- Remove the inner belt moulding.

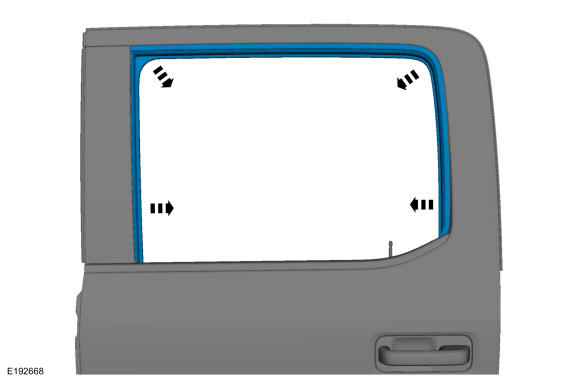

- Remove the rear door glass top run.
Vehicles with manual windows

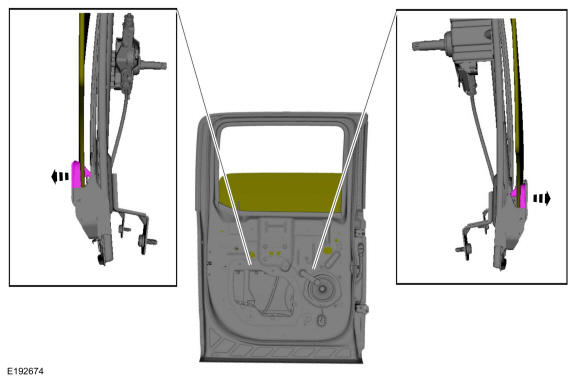

- Release the clips from rear door window glass.
Vehicles with power windows
- Release the clips from rear door window glass.
All vehicles
- Remove the rear door glass.
