Rear Door Window Control Switch - Crew Cab, Vehicles With: Rear Power Windows: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the rear door trim panel. Refer to: Rear Door Trim Panel - Crew Cab .

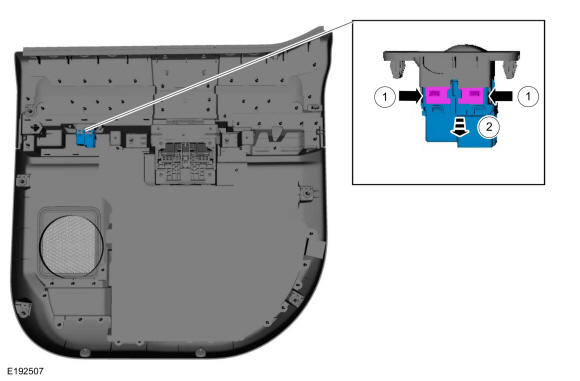

  2. Remove the rear door window control switch.

    1. Release the locking tabs from the rear door window control switch.
    2. Remove the rear door window control switch.

GFD411031Courtesy of FORD MOTOR COMPANY
