Rear Door Glass Run and Bracket - Super Cab, Vehicles With: Front Power Windows: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel - Super Cab .
Remove the watershield.

Courtesy of FORD MOTOR COMPANY

Aft rear door glass run and bracket
Remove the bolts and the aft rear door glass run and bracket.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

Fore rear door glass run and bracket

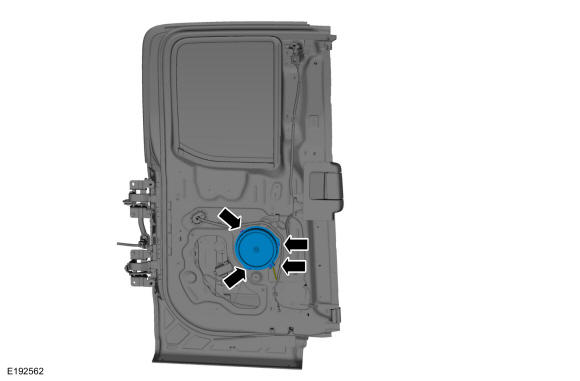

Remove the rear door speaker.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the fore rear door glass run and bracket.
1. Remove the fore rear door glass run and bracket bolts.
  Torque: 93 lb.in (10.5 Nm)
2. Remove the fore rear door glass run and bracket.

Courtesy of FORD MOTOR COMPANY
