Front Door Window Control Switch - Vehicles With: Front Power Windows: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Both doors

Remove the front door trim panel. Refer to: Front Door Trim Panel .

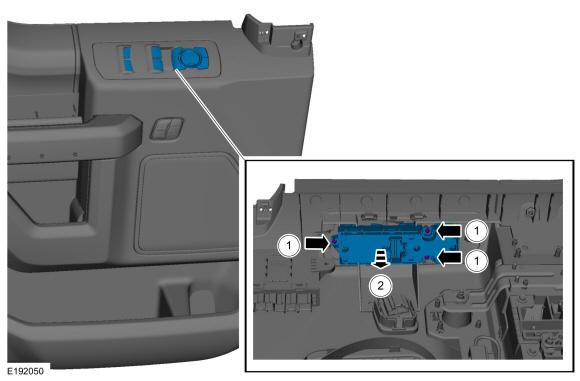

Driver door
Remove the front door window control switch.
1. Remove the front door window control switch screws.
2. Remove the front door window control switch from the door trim panel.
Courtesy of FORD MOTOR COMPANY

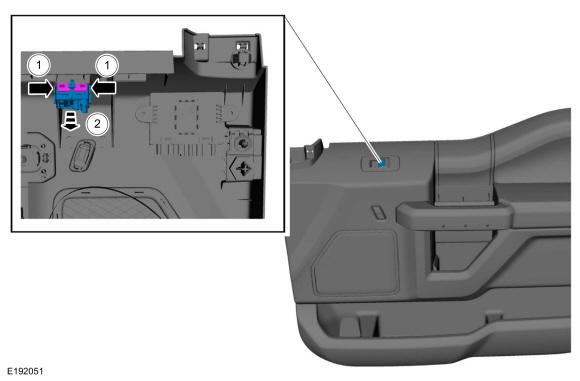

Passenger door
Remove the front door window control switch.
1. Release the front door window control switch retaining clips.
2. Remove the front door window control switch from the door trim panel.

Courtesy of FORD MOTOR COMPANY
