Overhead Console: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

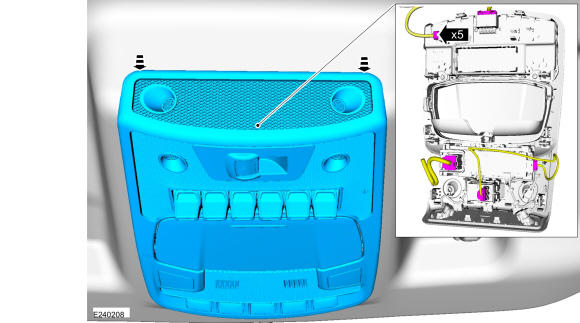

  1. Working from the rear forward, release the clips and remove the overhead console.

    • Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

GFD411136Courtesy of FORD MOTOR COMPANY
