Instrument Panel Upper Section: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Remove the instrument panel. Refer to: Instrument Panel .

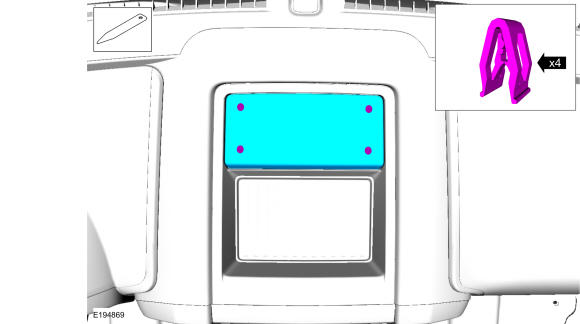

  2. NOTE: Upper instrument panel storage tray with speaker shown, others similar.

    If equipped, release the clips and remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

    GFD411111Courtesy of FORD MOTOR COMPANY

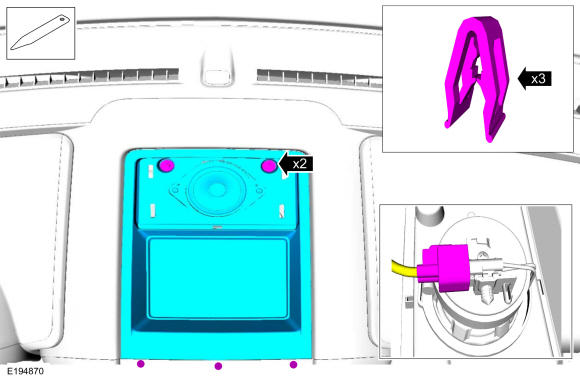

  3. NOTE: Upper instrument panel storage tray with speaker shown, others similar.

    Remove the bolts, release the clips and remove upper instrument panel storage tray. Use the General Equipment: Interior Trim Remover

    Torque: 22 lb.in (2.5 Nm)

    GFD411112Courtesy of FORD MOTOR COMPANY
  4. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

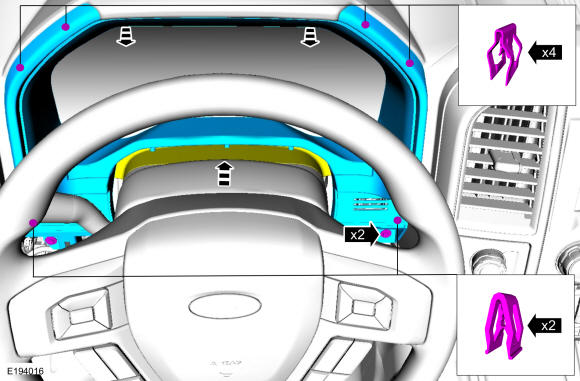

  5. Remove the 2 bolts, release the clips and remove IPC trim panel.

    Torque: 22 lb.in (2.5 Nm)

    GFD411113Courtesy of FORD MOTOR COMPANY

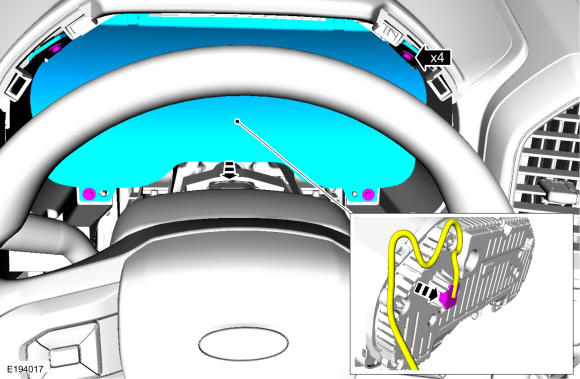

  6. Remove the bolts and the IPC.

    • Disconnect the electrical connector.

      Torque: 21 lb.in (2.4 Nm)

    GFD411114Courtesy of FORD MOTOR COMPANY

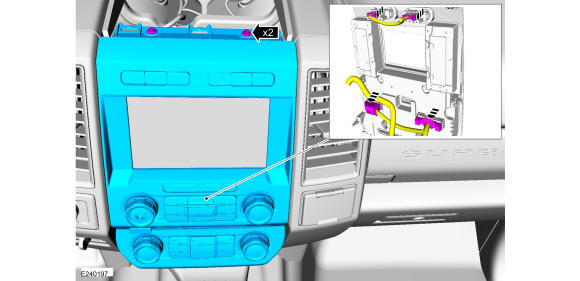

  7. NOTE: FCIM with touchscreen shown. FCIM without touch screen similar.

    Remove the bolts and the FCIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD411115Courtesy of FORD MOTOR COMPANY

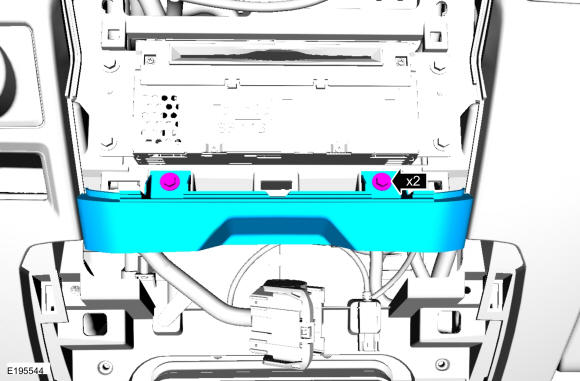

  8. Remove the bolts and the instrument panel lower finish panel.

    Torque: 48 lb.in (5.4 Nm)

    GFD411116Courtesy of FORD MOTOR COMPANY

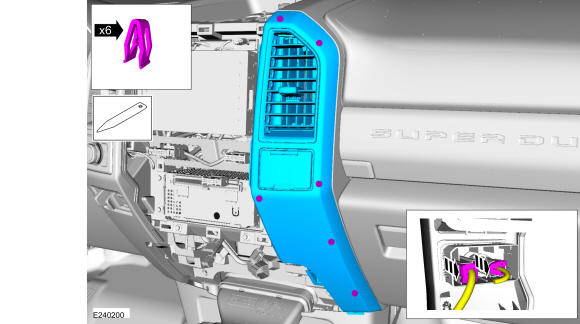

  9. NOTE: Instrument panel center trim panel without floor console shown, with floor console similar.

    Release the clips and remove the RH instrument panel center trim panel.

    • Disconnect the electrical connectors.

    GFD411117Courtesy of FORD MOTOR COMPANY

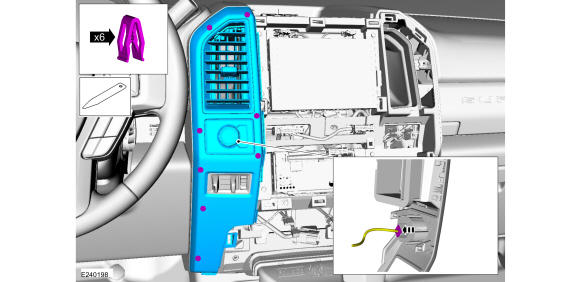

  10. NOTE: Instrument panel center trim panel without floor console shown, with floor console similar.

    Release the clips and remove the LH instrument panel center trim panel.

    • Disconnect the electrical connectors.

    GFD411118Courtesy of FORD MOTOR COMPANY

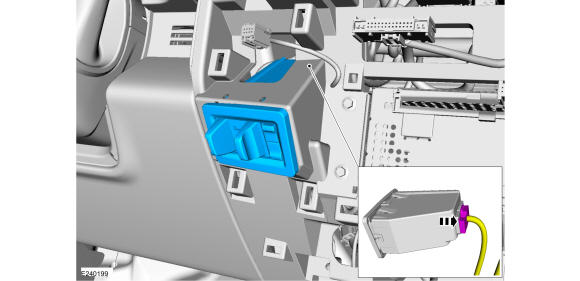

  11. If equipped, remove the trailer brake controller module.

    • Disconnect the electrical connector.

    GFD411119Courtesy of FORD MOTOR COMPANY

    Vehicles without touchscreen

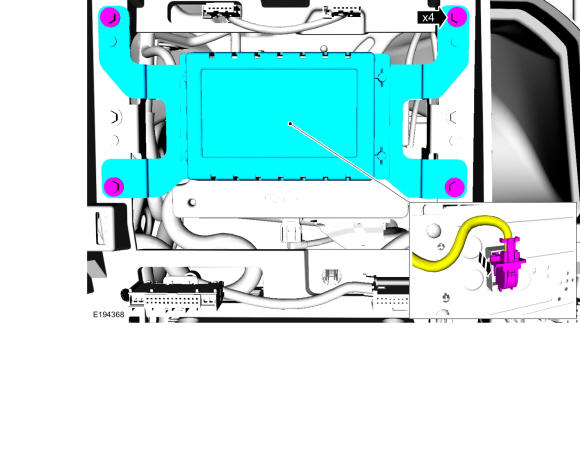

  12. Remove the bolts and the FCDIM.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD411120Courtesy of FORD MOTOR COMPANY

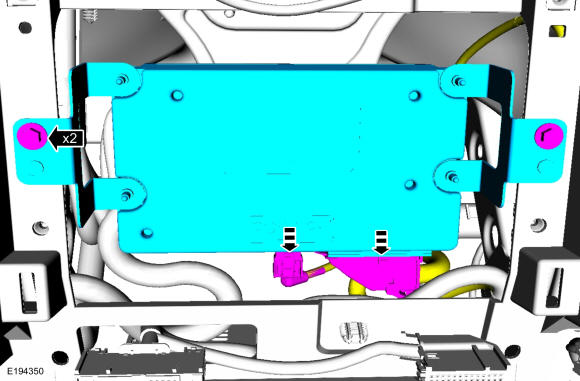

  13. Remove the two bolts and the APIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD411121Courtesy of FORD MOTOR COMPANY

    Vehicles with touchscreen

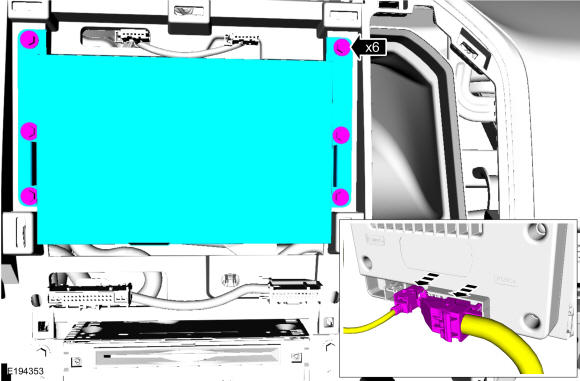

  14. Remove the bolts and the FDIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD411122Courtesy of FORD MOTOR COMPANY

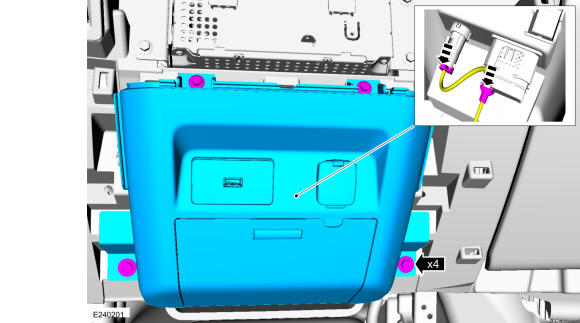

    Vehicles without floor console

  15. Remove bolts and the lower instrument panel finish panel.

    • Disconnect the electrical connectors.

      Torque: 48 lb.in (5.4 Nm)

    GFD411123Courtesy of FORD MOTOR COMPANY

    All vehicles

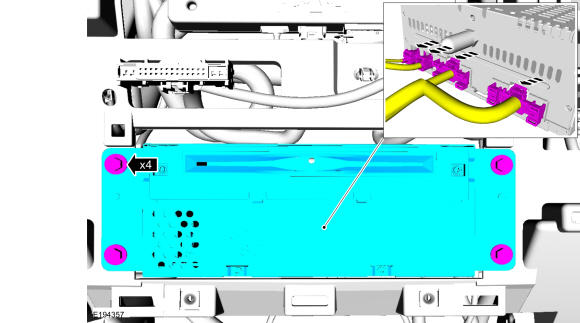

  16. Remove the bolts and the ACM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD411124Courtesy of FORD MOTOR COMPANY

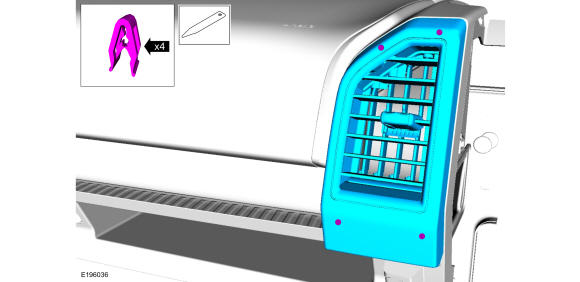

  17. Release the clips and remove the RH register finish panel. Use the General Equipment: Interior Trim Remover
    GFD411125Courtesy of FORD MOTOR COMPANY

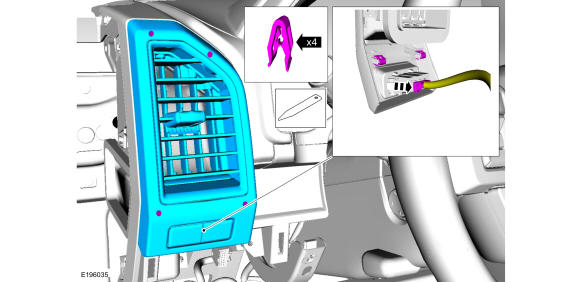

  18. NOTE: Vehicle with spot light shown, without spotlight similar.

    Release the clips and remove the LH register finish panel.

    • If equipped, disconnect the electrical connector.

    GFD411126Courtesy of FORD MOTOR COMPANY

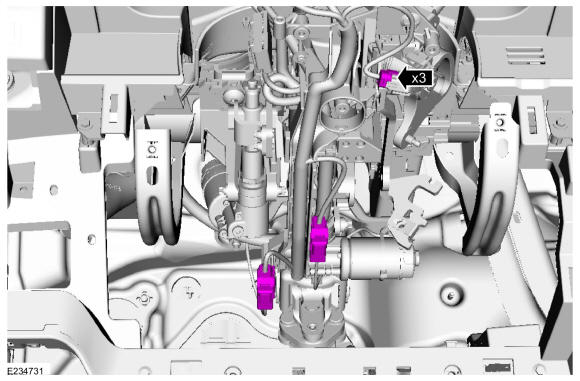

  19. Disconnect the electrical connector(s).
    GFD411127Courtesy of FORD MOTOR COMPANY

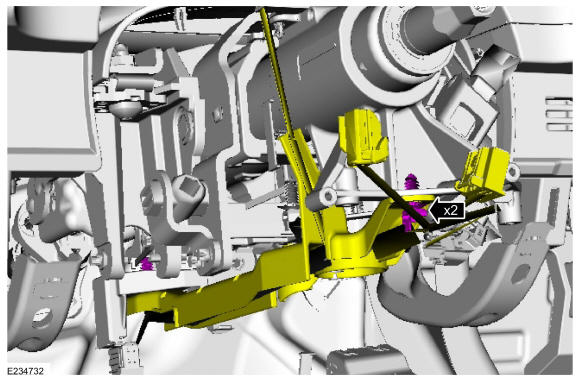

  20. Detach the wiring harness retainers and position the wire harness aside.
    GFD411128Courtesy of FORD MOTOR COMPANY

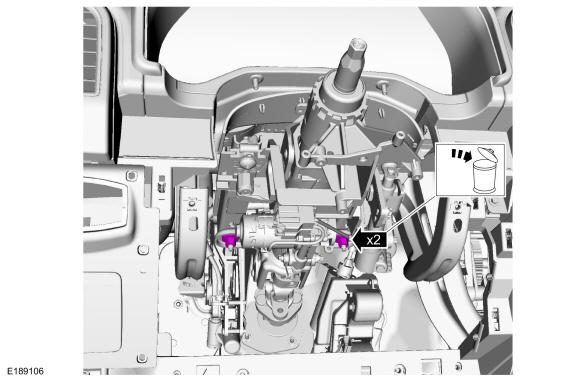

  21. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the nuts.

    Torque: 22 lb.ft (30 Nm)

    GFD411129Courtesy of FORD MOTOR COMPANY

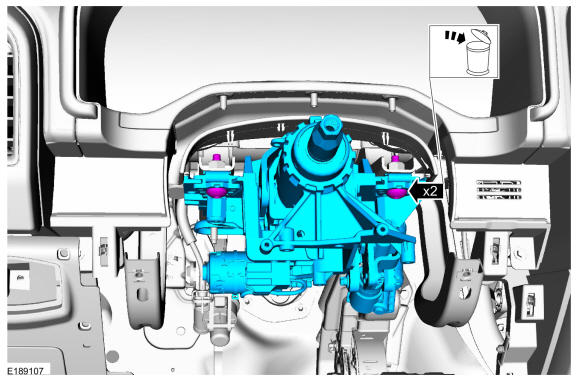

  22. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolts and remove the steering column.

    Torque: 21 lb.ft (28 Nm)

    GFD411130Courtesy of FORD MOTOR COMPANY

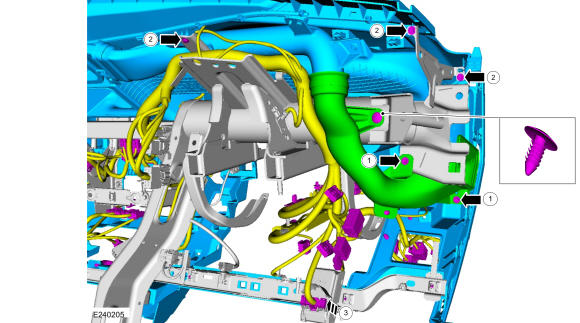

  23. Disconnect the electrical connectors. release the harness retainers and position aside the electrical harness.

    1. Remove the bolts, the push pin and the HVAC duct.

      Torque: 22 lb.in (2.5 Nm)

    2. Remove the bolts.

      Torque: 22 lb.in (2.5 Nm)

    3. Disconnect the electrical connector.

    GFD411131Courtesy of FORD MOTOR COMPANY

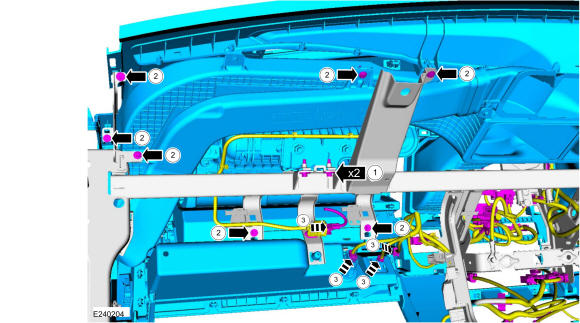

  24. Disconnect the electrical connectors, release the harness retainers and position aside the electrical harness.

    • Remove the bolts.

      Torque: 80 lb.in (9 Nm)

    • Remove the bolts.

      Torque: 22 lb.in (2.5 Nm)

    • Disconnect the electrical connectors.

    GFD411132Courtesy of FORD MOTOR COMPANY

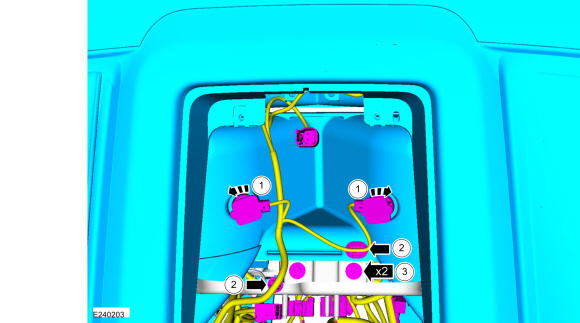

    1. Disconnect the electrical connectors.
    2. Release the harness retainers.
    3. Remove the bolts.

      Torque: 80 lb.in (9 Nm)

    GFD411133Courtesy of FORD MOTOR COMPANY

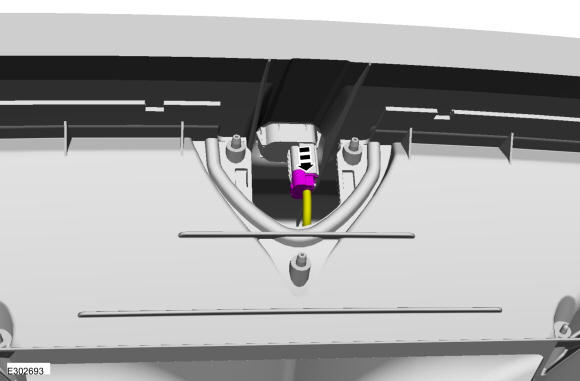

  26. Disconnect the electrical connector.
    GFD411134Courtesy of FORD MOTOR COMPANY

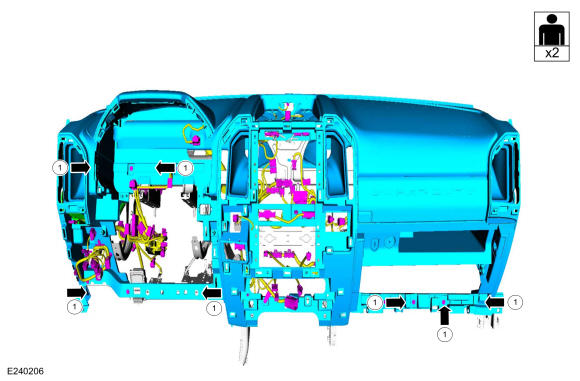

  27. Disconnect the electrical connectors. release the harness retainers and position aside the electrical harness.

    1. Remove the bolts.

      Torque: 22 lb.in (2.5 Nm)

GFD411135Courtesy of FORD MOTOR COMPANY
