Glove Compartment: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding

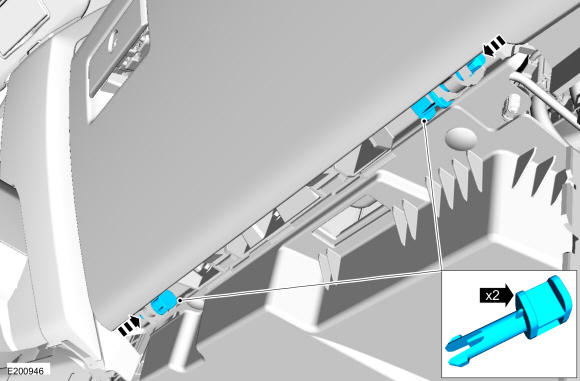

- Remove the glove compartment hinge pins.

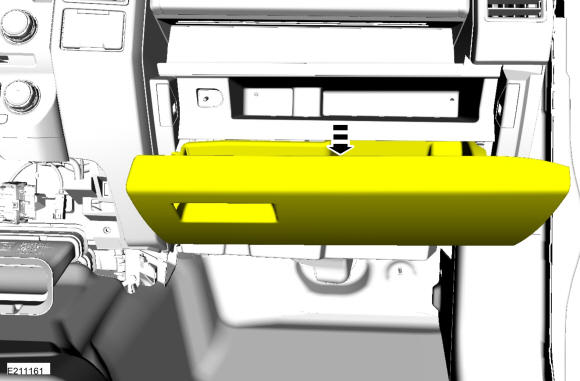

- Open the glove compartment.

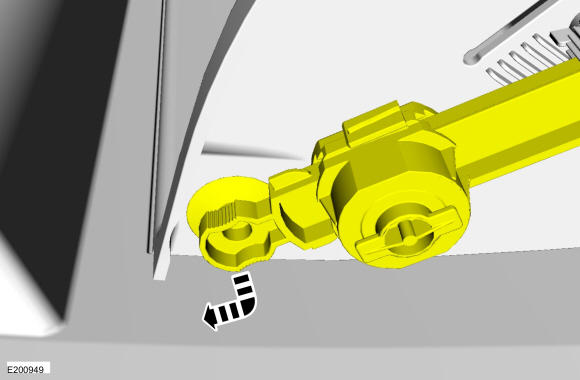

- Remove the glove compartment dampener from the glove compartment by pushing down and forward at the damper end.

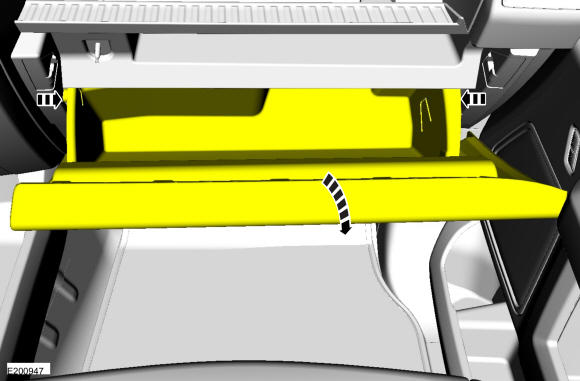

- Release glove compartment downstops and fully lower the glove compartment.

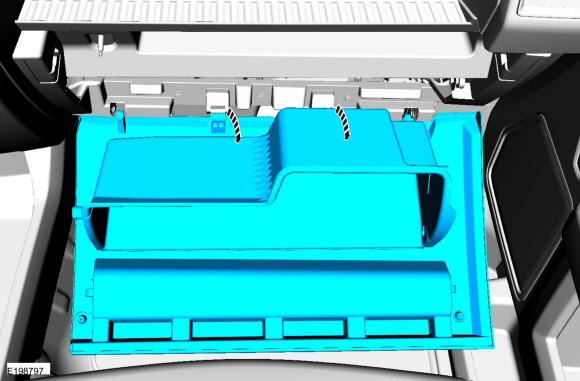

- Remove the glove compartment from the hinge line.
