Auxiliary Power Point: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

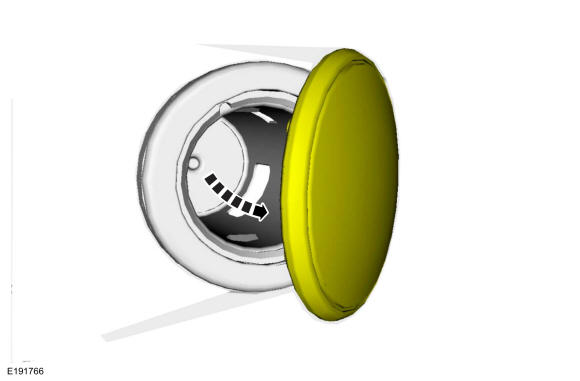

- Open the power point cover.

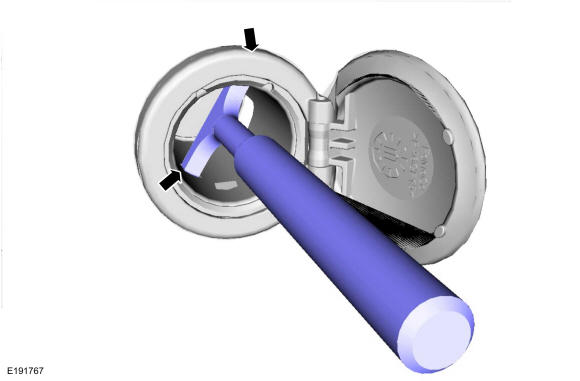

- Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.
-

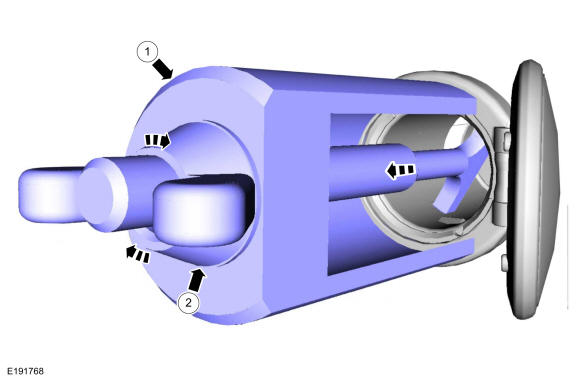

- Install the receiver cup.
- Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.

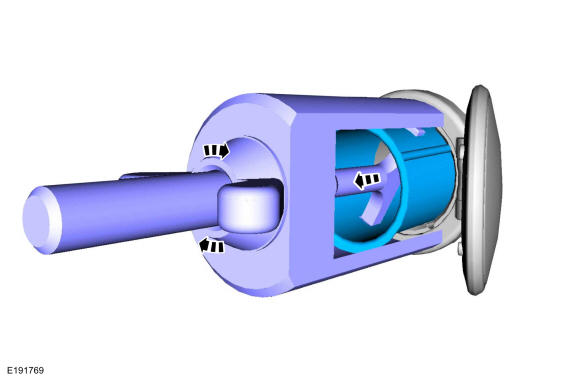

- Tighten the wing nut to pull the power point socket out of the retainer. Use Special Service Tool: 501-194 Remover, Power Point.
- Disconnect the electrical connector.
