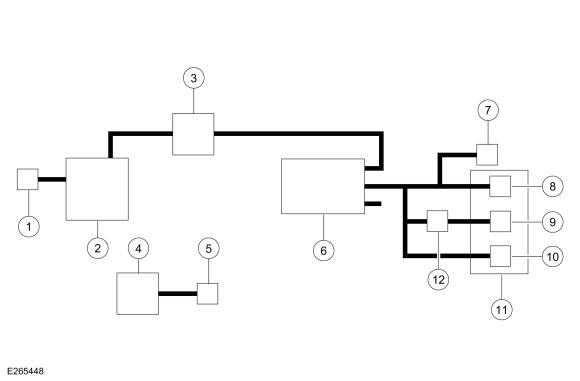

System Diagram
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCV valve |
| 2 |
Intake manifold |
| 3 |
EVAP canister purge valve |
| 4 |
valve cover |
| 5 |
Intake air expansion resonator |
| 6 |
EVAP canister |
| 7 |
Fuel filler vent tube |
| 8 |
Fuel vent valve |
| 9 |
Fuel pump module |
| 10 |
Fuel vent valve |
| 11 |
Fuel tank |
| 12 |
Fuel tank pressure sensor |
