Glow Plugs: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer toOEM Color Coding
Right side
- Remove the Air Cleaner. Refer to: Air Cleaner .
- Remove the right fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: It may be necessary to unthread the engine sound shield retainers from the engine.

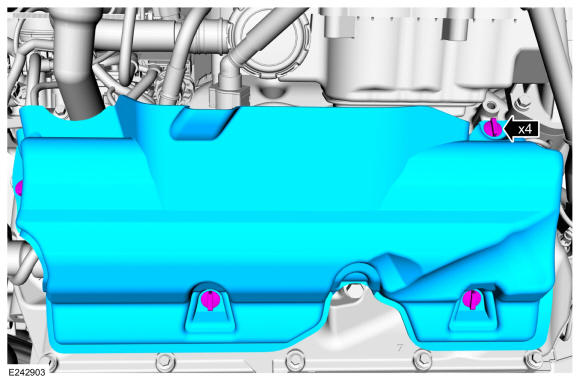

Remove the right engine sound shield retainers and then remove the right engine sound shield.

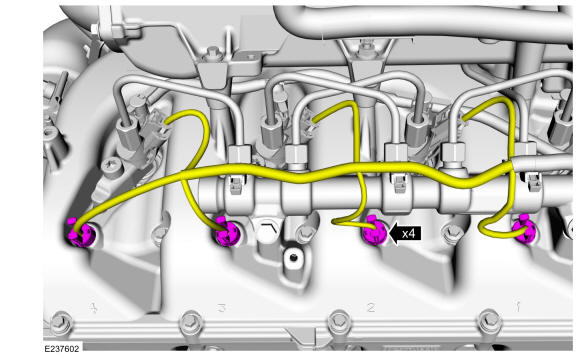

- Using the tabs on the top of glow plug connector, disconnect the glow plug connector from the glow plugs.
Left side
- Remove the left fender splash shield. Refer to: Fender Splash Shield .
-
NOTE: It may be necessary to unthread the engine sound shield retainers from the engine.

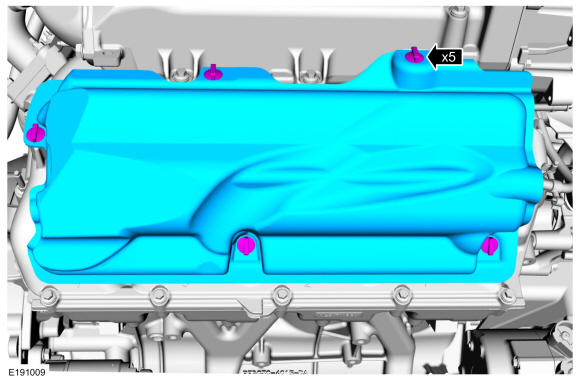

Remove the left engine sound shield retainers and then remove the left engine sound shield.

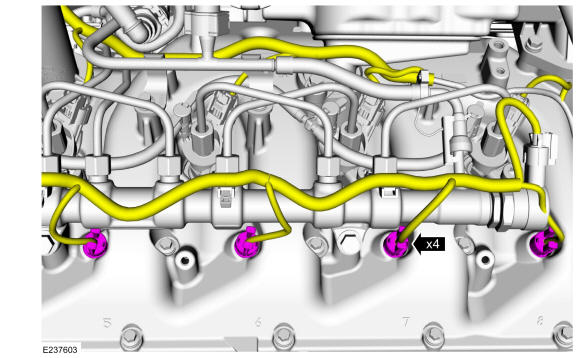

- Using the tabs on the top of glow plug connector, disconnect the glow plug connector from the glow plugs.
Both sides
-

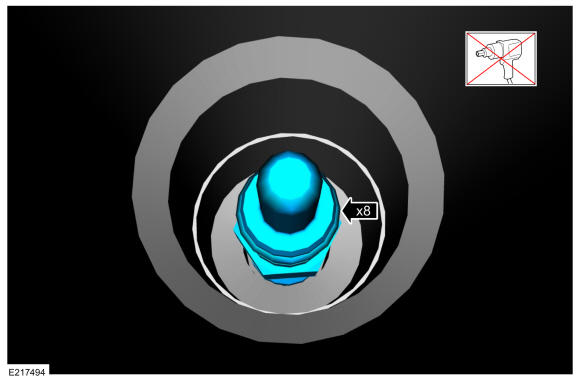

NOTE: The use of an 0.3150 in (8 mm) deep socket with no internal shoulder is necessary for removal and installation of the glow plug.
Remove the glow plugs.
