Disassembly And Assembly: Turbocharger: Assembly

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

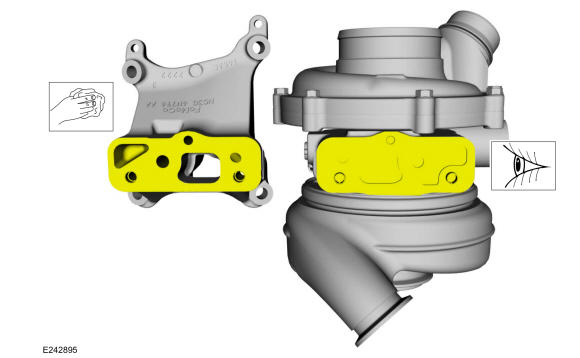

- Check the turbocharger and the turbocharger pedestal sealing surfaces for damage.
- Clean the turbocharger and the turbocharger pedestal sealing surfaces.
Courtesy of FORD MOTOR COMPANY

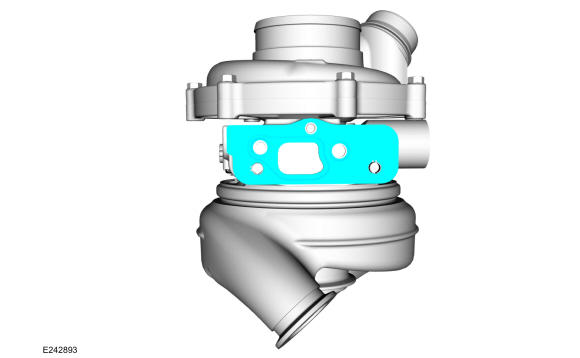

Install a new turbocharger pedestal gasket.

Courtesy of FORD MOTOR COMPANY

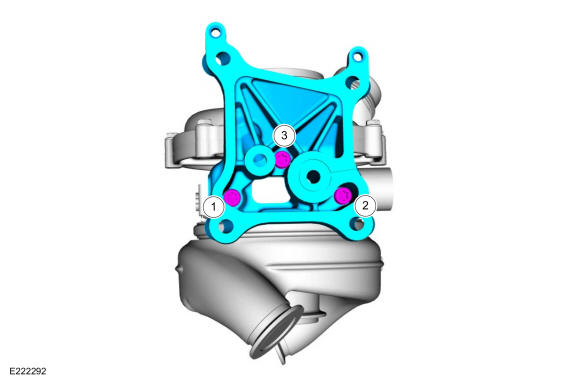

With the aid of an assistant, install the turbocharger pedestal on to the turbocharger. Install the new turbocharger pedestal bolts and washers, then tighten the turbocharger pedestal bolts in the following 3 stages and in the sequence shown.
Torque: Stage 1: 133 lb.in (15 Nm) | Stage 2: 177 lb.in (20 Nm) | Stage 3: 120 deg.

Fig 1: Turbocharger Pedestal Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Remove the turbocharger from the bench.
