Turbocharger - Component Location

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

6.7L Power Stroke Diesel

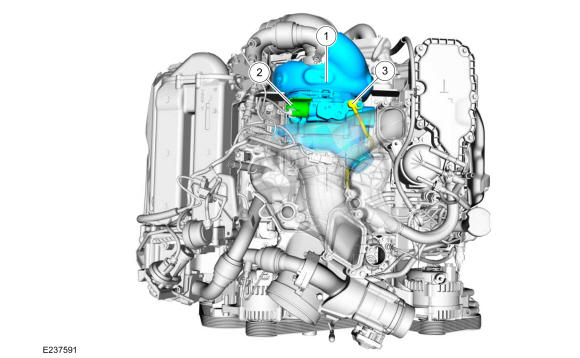

GFD407840Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger
2 Turbocharger solenoid
3 Turbocharger coolant return tube
