Throttle Body: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, 2019 Ford F-250 Super Duty, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
    • Disconnect the electrical connector and then detach the wire harness retainer.

    • Release the CAC (charge air cooler) outlet tube retaining clip, then disconnect the CAC (charge air cooler) outlet tube from the TB (throttle body) and position the CAC (charge air cooler) outlet tube out of the way.

    GFD407834Courtesy of FORD MOTOR COMPANY
  2. Disconnect the TB (throttle body) electrical connector.
    GFD407835Courtesy of FORD MOTOR COMPANY

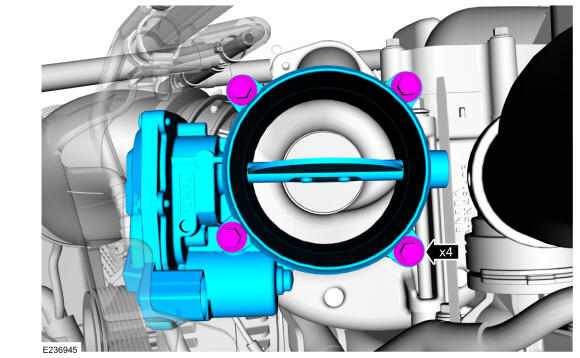

  3. Remove the TB (throttle body) retaining bolts and then remove the TB (throttle body).
    GFD407836Courtesy of FORD MOTOR COMPANY

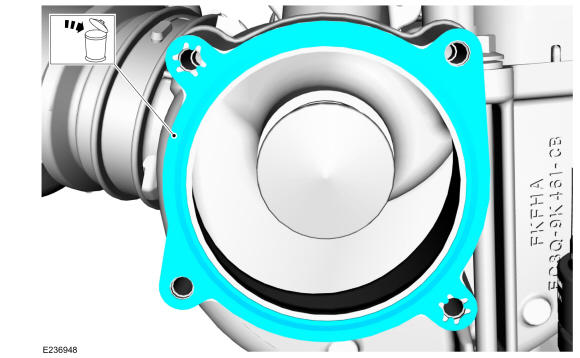

  4. Remove and discard the TB (throttle body) gasket.
GFD407837Courtesy of FORD MOTOR COMPANY
