Fuel Rail: Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, 2019 Ford F-250 Super Duty, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Left side
-
NOTE: The fuel rail bolts will be tightened in the fuel injector supply tube procedure.

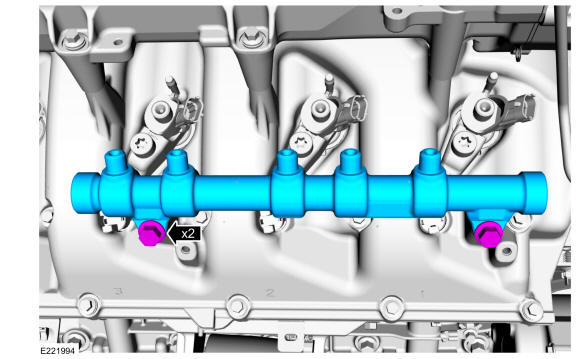

Install the left fuel rail. Hand start the left fuel rail bolts at this stage.

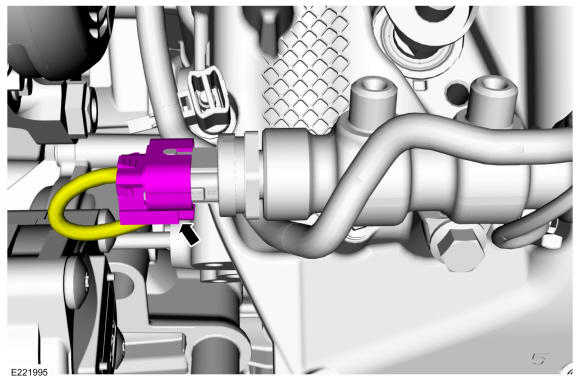

- Connect the fuel rail pressure sensor electrical connector at the front of the left fuel rail.
- Install the left fuel injector supply tubes. Refer to: Fuel Injector Supply Tube .
Right side
-
NOTE: The fuel rail bolts will be tightened in the fuel injector supply tube procedure.

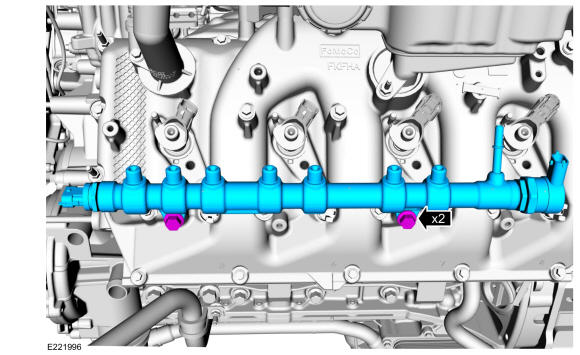

Install the right fuel rail. Hand start the right fuel rail bolts at this stage.
- Install the right fuel injector supply tubes. Refer to: Fuel Injector Supply Tube .
Both sides
- Install the fuel rail supply tube assembly. Refer to: Fuel Rail Supply Tube .
