Fuel Pump Driver Module (FPDM): Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, 2019 Ford F-250 Super Duty, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Pickup

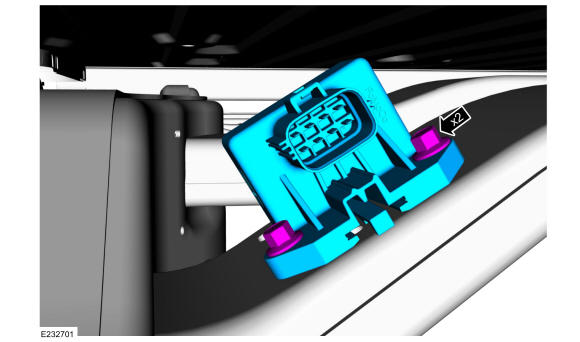

Install the fuel pump driver module (FPDM), then install and tighten the fuel pump driver module (FPDM) retainers.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

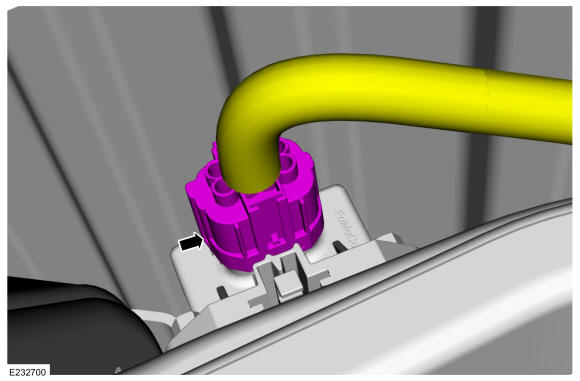

Connect the fuel pump driver module (FPDM) electrical connector.

Courtesy of FORD MOTOR COMPANY

Chassis Cab

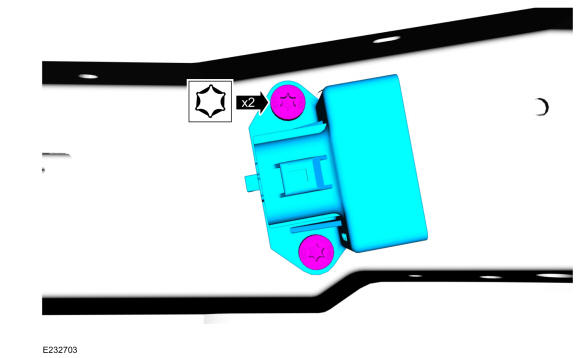

Install the fuel pump driver module, then install and tighten the fuel pump driver module retainers.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

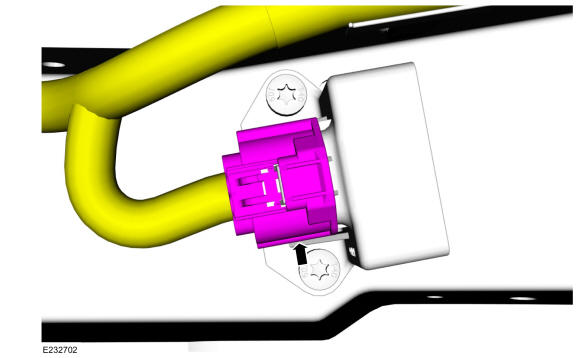

Connect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY
