Fuel Charging and Controls - Component Location
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, 2019 Ford F-250 Super Duty, and 2018 Ford F-550 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

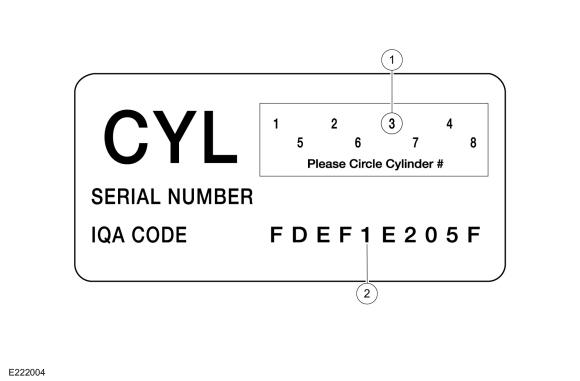

Fuel Injector Replacement Label 6.7L Power Stroke Diesel
|
I |
| Item | Description |
|---|---|
| 1 | Cylinder number location of replacement fuel injector |
| 2 | Fuel injector IQA (injector quantity adjustment) code of replacement fuel injector |

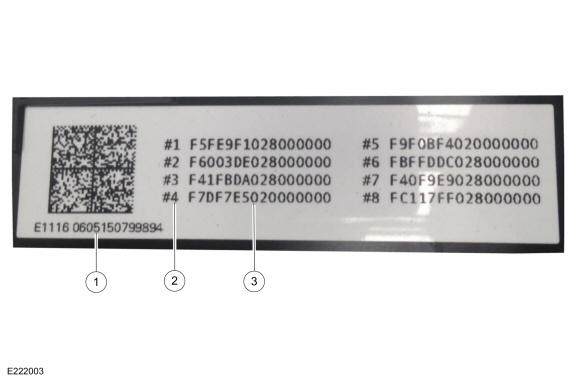

Fuel Injector IQA Label 6.7L Power Stroke Diesel
| Item | Description |
|---|---|
| 1 | Engine serial number |
| 2 | Cylinder number location |
| 3 | Fuel injector IQA (injector quantity adjustment) code |

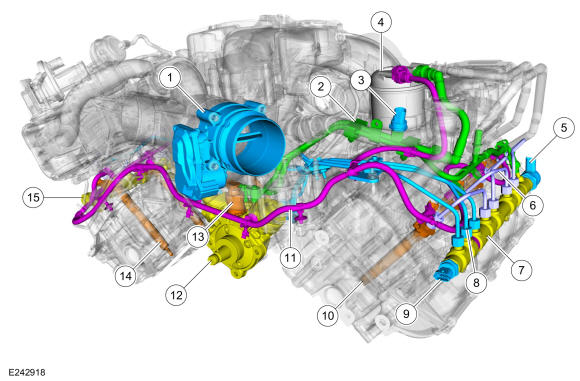

Fuel System 6.7L Power Stroke Diesel
| Item | Description |
|---|---|
| 1 | Throttle Body |
| 2 | Fuel injection pump supply tube assembly |
| 3 | Fuel pressure and temperature sensor |
| 4 | Secondary fuel filter |
| 5 | Fuel pressure control valve |
| 6 | Fuel injector supply tube(s) |
| 7 | Left fuel rail |
| 8 | Fuel rail supply tube assembly |
| 9 | Fuel Rail Pressure sensor |
| 10 | Left fuel injector(s) |
| 11 | Fuel injector fuel return line |
| 12 | Fuel injection pump |
| 13 | Fuel volume control valve |
| 14 | Right fuel injector(s) |
| 15 | Right fuel rail |

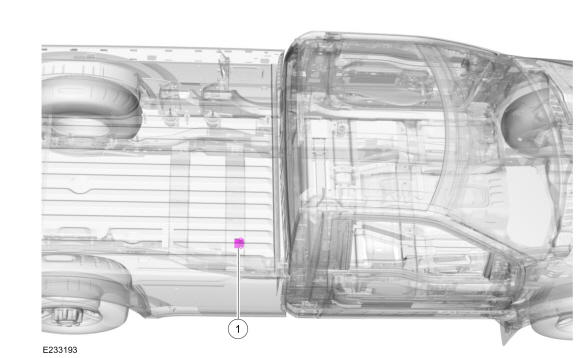

Pickup - FPDM (fuel pump driver module)
| Item | Description |
|---|---|
| 1 | FPDM (fuel pump driver module) Comments: The fuel pump driver module (FPDM) is attached to the top of the frame rear crossmember. |

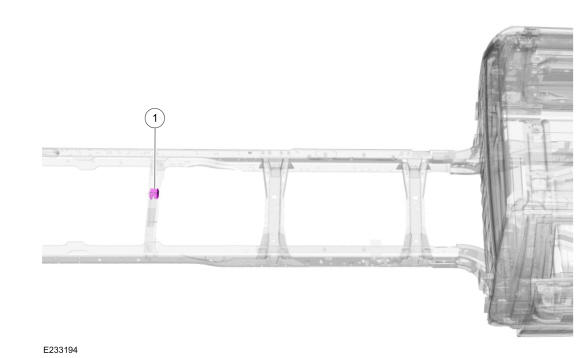

Chassis Cab - FPDM (fuel pump driver module)
| Item | Description |
|---|---|
| 1 | FPDM (fuel pump driver module) Comments: The fuel pump driver module (FPDM) is attached to the front of the frame rear crossmember. |
