Removal And Installation: Radiator: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Drain the powertrain secondary cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
Remove the both headlamps assemblies. Refer to: Headlamp Assembly .

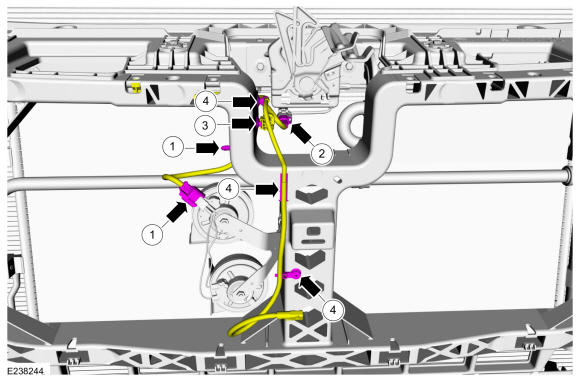

1. All Vehicles. Disconnect the horn electrical connector and detach the wiring harness retainer.
2. Vehicles Equipped With Hood Ajar Switch. Disconnect the electrical connector.
3. Vehicles Not Equipped With Hood Ajar Switch. Detach the wiring harness retainer.
4. Vehicles With Park Aid Camera. Detach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Detach the pin-type retainer, release the clips and position the washer fluid hose aside.

Courtesy of FORD MOTOR COMPANY

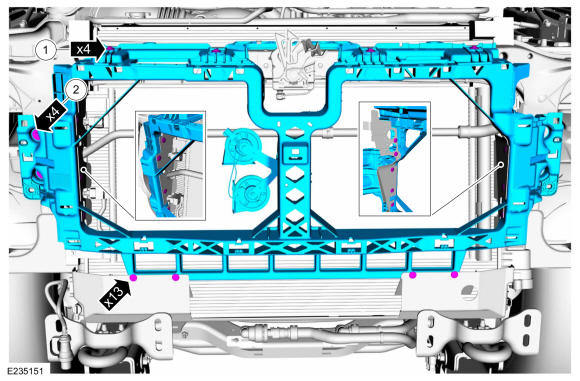

Remove the bolts, pin-type retainers and the radiator grille bracket.
Torque: Item 1: 62 lb.in (7 Nm) Item 2: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

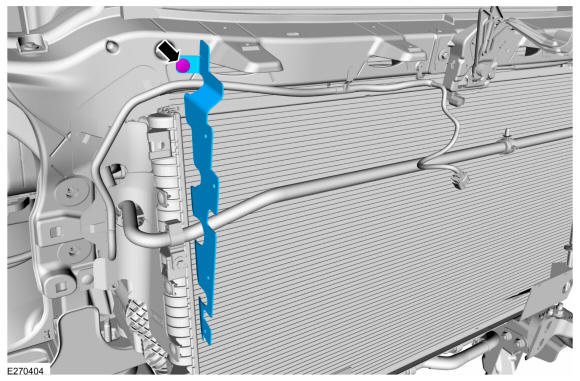

Remove the pin-type retainer and the RH air deflector.

Courtesy of FORD MOTOR COMPANY
Detach the pin-type retainers and remove the LH air deflector.

Courtesy of FORD MOTOR COMPANY

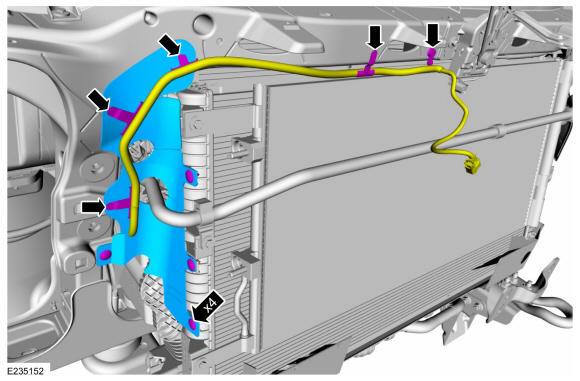

- Detach the wiring harness retainers.
- Remove the pin-type retainers and the RH air deflector.
Courtesy of FORD MOTOR COMPANY

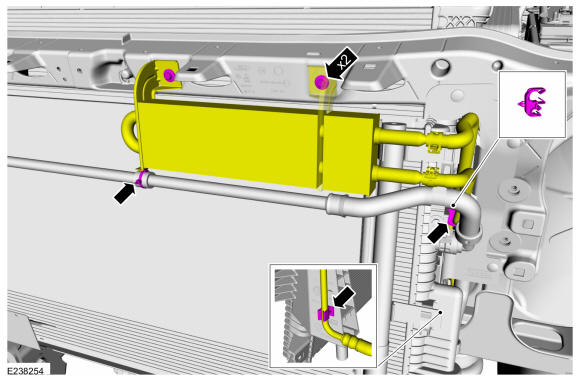

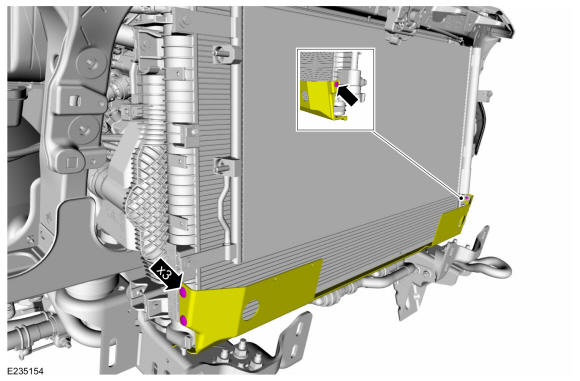

- Detach the power steering cooler hose retainers from the primary radiator.
- Remove the bolts and position the power steering cooler aside.
  Torque: 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

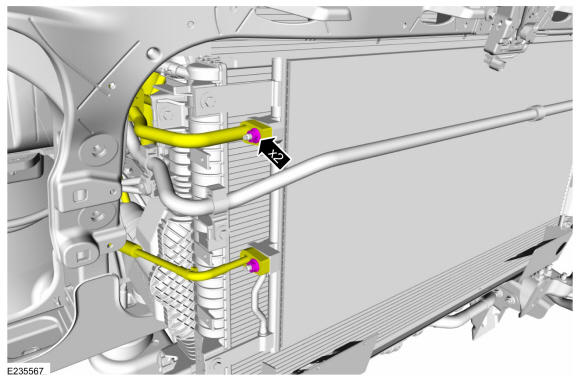

Remove the condenser inlet, outlet nuts and disconnect the fittings.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

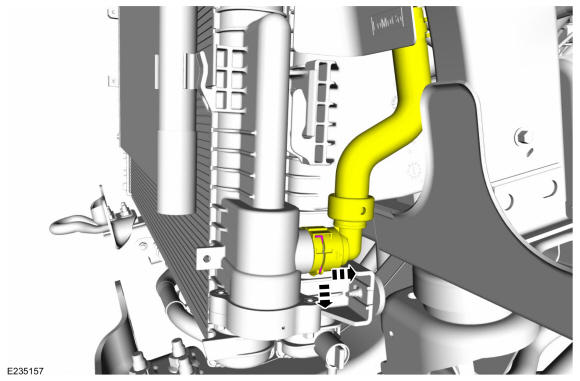

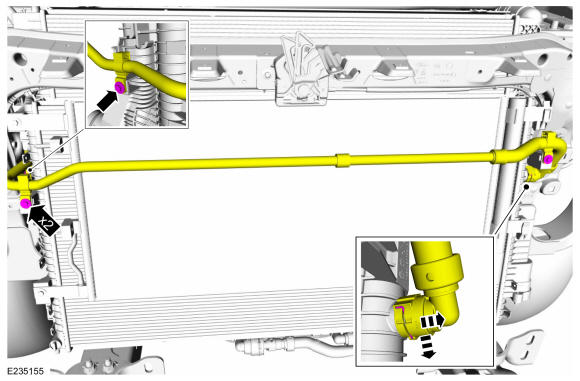

- Pull the radiator hose to coolant pump spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the radiator hose.
- Remove the bolts and position the coolant hose aside.
Courtesy of FORD MOTOR COMPANY
Detach the air deflector pin-type retainers.

Courtesy of FORD MOTOR COMPANY
Pull the radiator to CAC hose spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the radiator to CAC hose.

Courtesy of FORD MOTOR COMPANY

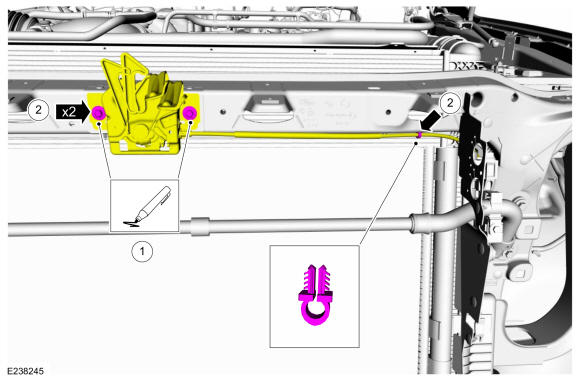

1. Mark the hood latch.
2. Remove the bolts, detach the retainer and position the hood latch aside.
  Torque: 26 lb.ft (35 Nm)
Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Release the retainers and remove the air cleaner upper intake duct.

Courtesy of FORD MOTOR COMPANY

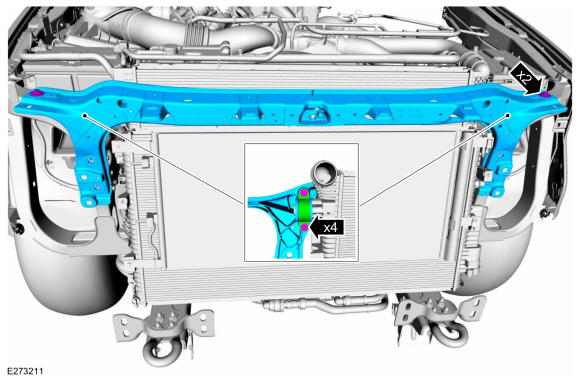

Remove the bolts, the radiator brackets and the radiator core support.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

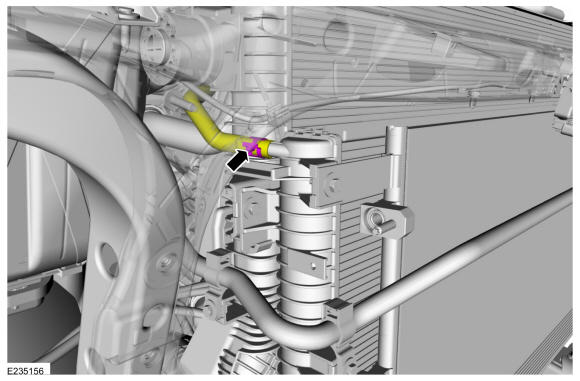

Release the clamp and disconnect the radiator to degas bottle bypass hose.. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

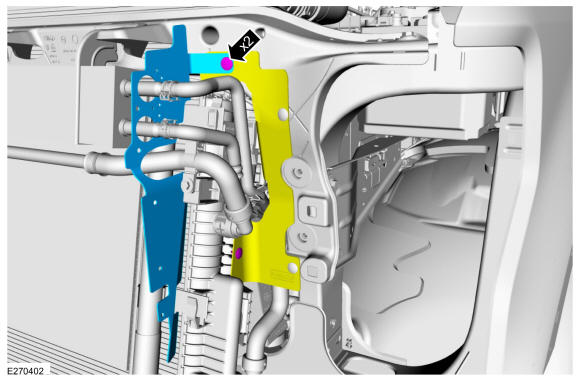

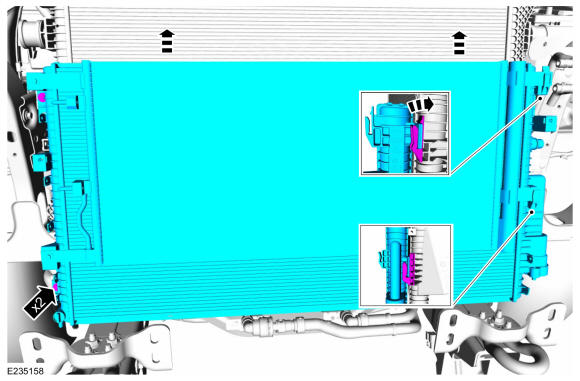

Remove the bolts, release the tab and remove the secondary radiator and condenser.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

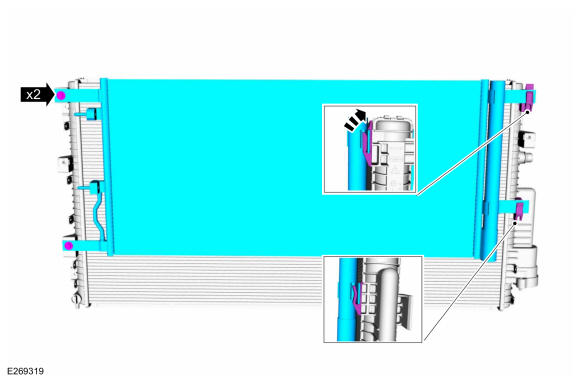

Remove the bolts, release the tab and remove the A/C condenser.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
