Powertrain Secondary Cooling System Flushing - Without Fuel Contamination

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Fluid Suction Gun
Hose Clamp Remover/Installer

Materials

Name Specification
Motorcraft® Premium Cooling System FlushVC-1 ESR-M14P7-A

Flushing

NOTE: For the coolant flow diagram, refer to DESCRIPTION AND OPERATION
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
    • Fabricate a fresh water supply hose:

    • NOTE: The heater hose will prevent kinking in tight areas of the engine compartment.

      Cut the garden hose to length. The hose must reach from a fresh water supply faucet to the vehicle.

    • Using a coupling adapter and 2 hose clamps, attach a 61 cm (2 ft) length of heater hose to the garden hose.

    GFD407582Courtesy of FORD MOTOR COMPANY
    • Fabricate a drain hose.

    • NOTE: The heater hose will prevent kinking in tight areas of the engine compartment.

      Using a coupling adapter and 2 hose clamps, attach a 61 cm (2 ft) length of heater hose to the remaining section of the garden hose to be used as a drain hose.

    GFD407583Courtesy of FORD MOTOR COMPANY

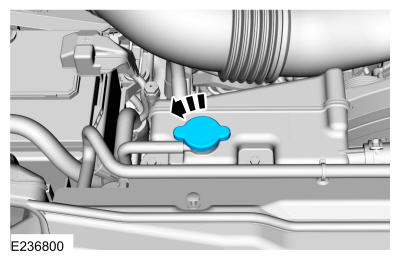

  4. WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.

    Release the pressure in the cooling system by slowly turning the pressure relief cap one-half turn counterclockwise. When the pressure is released, remove the pressure relief cap.

    GFD407682Courtesy of FORD MOTOR COMPANY

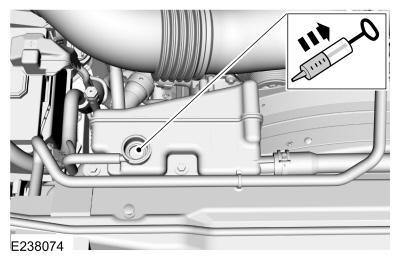

  5. Using a suitable suction devise, siphon all contents and contaminants from the degas bottle.. Use the General Equipment: Fluid Suction Gun
    GFD407686Courtesy of FORD MOTOR COMPANY
  6. Remove the thermostat. Refer to: Thermostat .

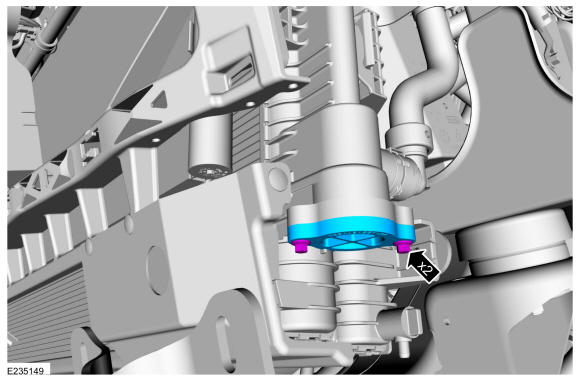

  7. Install the thermostat cover and the bolts.

    Torque: 53 lb.in (6 Nm)

    GFD407687Courtesy of FORD MOTOR COMPANY

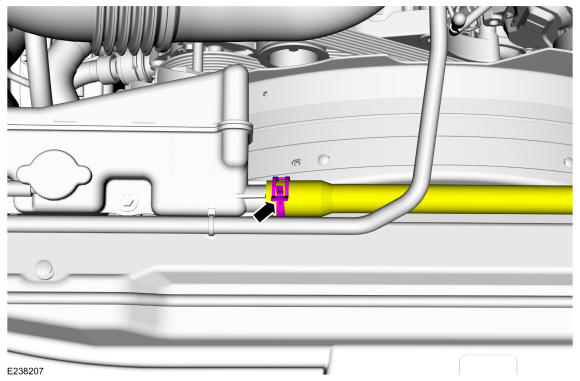

  8. Release the clamp and disconnect the degas bottle-to-CAC hose from the degas bottle.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407688Courtesy of FORD MOTOR COMPANY
  9. Using a coupling adapter and 2 hose clamps, connect the fabricated fresh water supply hose to the degas bottle-to-CAC hose.
  10. Using a hose clamp, connect the fabricated drain hose to the fitting on the degas bottle.

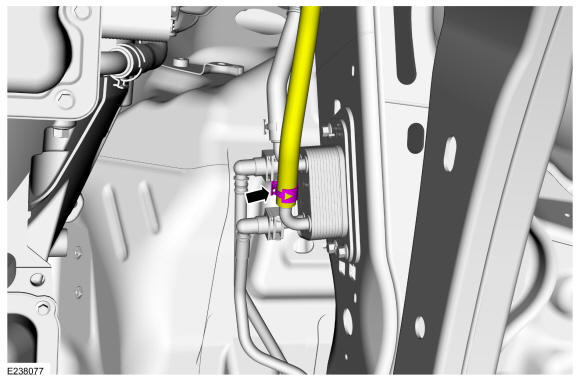

  11. Disconnect the fuel cooler-to-degas bottle hose from the fuel cooler.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407689Courtesy of FORD MOTOR COMPANY
  12. NOTE: Use of hot water during this procedure will improve removal of cooling system contaminants.

    Turn on the fresh water supply and allow the water to flush the CAC.

  13. Turn off the fresh water supply.

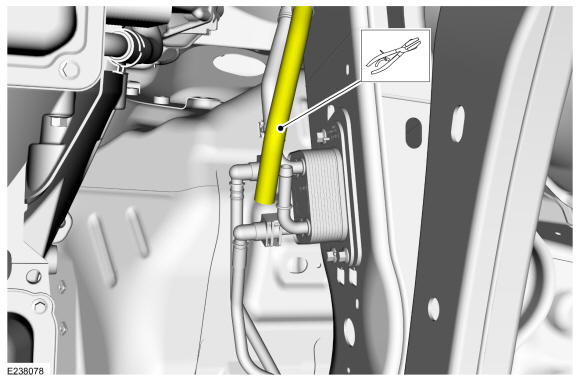

  14. Using hose pinch pliers, clamp the disconnected fuel cooler-to-degas bottle hose.
    GFD407690Courtesy of FORD MOTOR COMPANY
  15. Turn on the fresh water supply and allow the water to flush the fuel cooler.
  16. Turn off the fresh water supply.
  17. Remove the hose pinch pliers, connect the fuel cooler-to-degas bottle hose to the fuel cooler and position the clamp.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407689Courtesy of FORD MOTOR COMPANY
  18. Disconnect the fabricated fresh water supply hose from the degas bottle-to-CAC hose and the fabricated drain hose from the degas bottle fitting.
  19. Close the radiator draincock.
  20. NOTE: After adding Motorcraft® Premium Cooling System Flush to the secondary cooling system, carry out the remaining steps of this procedure within 24 hours. Failure to follow these instructions may damage the cooling system.

    1. Fill the secondary cooling system with 950 mL (32 fl oz) of Motorcraft® Premium Cooling System Flush and water:

      Material: Motorcraft® Premium Cooling System Flush / VC-1 (ESR-M14P7-A)

    2. Fill the degas bottle to the maximum fill line.
    3. NOTE: The degas bottle cap must be loose so that the cooling system does not get pressurized.

      Install the degas bottle cap until it starts to ratchet. Back the degas bottle cap off one-half turn.

    4. Start and idle the engine until the coolant level stabilizes.
    5. If the coolant level drops below the minimum fill line refill the degas bottle to the maximum fill line. Install the degas bottle cap until it starts to ratchet. Back the degas bottle cap off one-half turn.
    6. Run the engine at 2, 000 rpm for 2 minutes.
    7. Bring the engine to an idle.
    8. If the coolant level drops below the minimum fill line refill the degas bottle to the maximum fill line. Install the degas bottle cap until it starts to ratchet. Back the degas bottle cap off one-half turn.
    9. Repeat Steps 6 through 8 until the coolant level stabilizes. Shut the engine off.
    10. Fill the degas bottle to 20 mm (0.787 in) above the maximum fill line. Install the degas bottle cap.

  21. NOTE: Failure to run the engine at 2, 000 rpm for 1 hour will result in insufficient cleaning of the cooling system.

    Using a scan tool, select active command and set the engine rpm to 2, 000 and run the engine for 1 hour.

  22. Return the engine to idle speed, shut the engine off and allow the engine to cool.
  23. WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.

    Release the pressure in the cooling system by slowly turning the pressure relief cap 1/2 turn counterclockwise. When the pressure is released, remove the pressure relief cap.

    GFD407682Courtesy of FORD MOTOR COMPANY

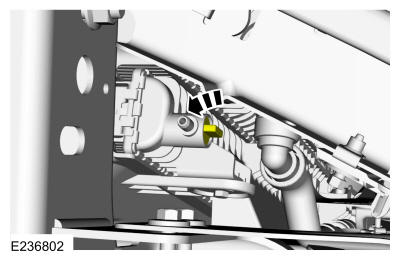

  24. Open the secondary radiator draincock and drain the cooling system. Leave the draincock open.
    GFD407683Courtesy of FORD MOTOR COMPANY
  25. Release the clamp, disconnect the fuel cooler-to-degas bottle hose from the fuel cooler and drain secondary cooling system.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407689Courtesy of FORD MOTOR COMPANY

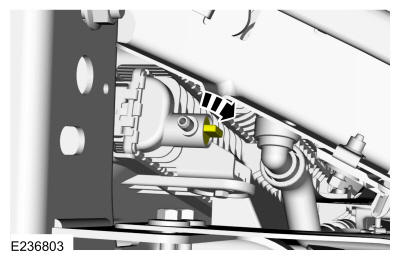

  26. Close the radiator draincock.
    GFD407684Courtesy of FORD MOTOR COMPANY
  27. Connect the fuel cooler-to-degas bottle hose and position the clamp.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407689Courtesy of FORD MOTOR COMPANY
  28. NOTE: Failure to flush all the Motorcraft® Premium Cooling System Flush from the cooling system will result in shortened coolant protection against corrosion of the cooling system.

    Turn on the fresh water supply to flush the secondary cooling system until the water is free of foam, bubbles or discoloration. Use a clear, clean approximately 1 L (1 qt) container to verify the drain water is clear.

  29. Turn off the fresh water supply.
  30. Open the secondary radiator draincock and drain the cooling system. Use a clear, clean approximately 1 L (1 qt) container to verify the drain water is clear of foam, bubbles or discoloration. Close the radiator draincock when finished.
  31. Release the clamp, disconnect the fuel cooler-to-degas bottle hose and drain the secondary cooling system. Use a clear, clean approximately 1 L (1 qt) container to verify the drain water is clear of foam, bubbles or discoloration. Connect the fuel cooler-to-degas bottle hose and position the clamp when finished.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407689Courtesy of FORD MOTOR COMPANY
  32. If any of the drain water in steps 43 through 44 shows signs of foam, bubbles or discoloration, repeat steps 41 through 44.
  33. Disconnect the fabricated fresh water supply hose from the degas bottle-to-CAC hose and the fabricated drain hose from the degas bottle fitting.
    1. NOTE: Use of hot water during this procedure will improve removal of cooling system contaminants.

      Fill the secondary cooling system with low hardness, low chloride water. Tap water which is verified with Rotunda Water Test Strip 5 pack 328-00007 or equivalent is acceptable. Alternatively, use water treated by reverse osmosis, or water that is de-ionized or distilled.

    2. Fill the degas bottle to the maximum fill line.
    3. NOTE: The degas bottle cap must be loose so that the cooling system does not get pressurized.

      Install the degas bottle cap until it starts to ratchet. Back the degas bottle cap off one-half turn.

    4. Start and idle the engine until the coolant level stabilizes.
    5. If the coolant level drops below the minimum fill line refill the degas bottle to the maximum fill line. Install the degas bottle cap until it starts to ratchet. Back the degas bottle cap off one-half turn.
    6. Run the engine at 2, 000 rpm for 2 minutes.
    7. Bring the engine to an idle.
    8. If the coolant level drops below the minimum fill line refill the degas bottle to the maximum fill line. Install the degas bottle cap until it starts to ratchet. Back the degas bottle cap off one-half turn.
    9. Repeat Steps 6 through 8 until the coolant level stabilizes. Shut the engine off.
    10. Fill the degas bottle to 20 mm (0.787 in) above the maximum fill line. Install the degas bottle cap.
  35. Open the secondary radiator draincock and drain the cooling system.
    GFD407683Courtesy of FORD MOTOR COMPANY

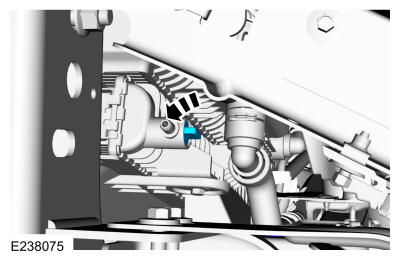

  36. Remove and discard the radiator draincock.
    GFD407691Courtesy of FORD MOTOR COMPANY
  37. Release the clamp, disconnect the fuel cooler-to-degas bottle hose from the fuel cooler and drain the secondary cooling system.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407689Courtesy of FORD MOTOR COMPANY

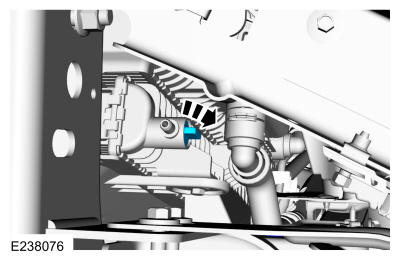

  38. Install a new secondary radiator draincock, making sure the draincock is closed.
    GFD407692Courtesy of FORD MOTOR COMPANY
  39. Connect the fuel cooler-to-degas bottle hose to the fuel cooler and position the clamp.. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407689Courtesy of FORD MOTOR COMPANY
  40. Install the thermostat and a new O-ring seal. Refer to: Thermostat .
  41. Fill and bleed the cooling system with the correct mixture of engine coolant and distilled water. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding

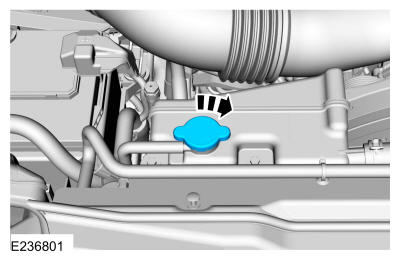

  42. Install a new pressure relief cap.
GFD407685Courtesy of FORD MOTOR COMPANY
