Powertrain Secondary Cooling - Component Location
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

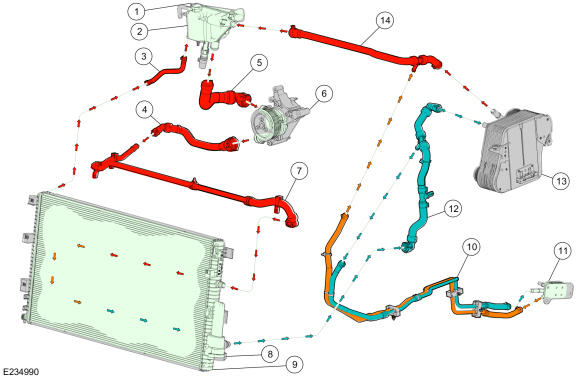

Coolant temperature varies with ambient temperature and load. Temperatures shown are for an ambient temperature of 38 deg. C (100 deg. F). Red arrows indicate a temperature over 45 deg. C (113 deg. F), orange arrows indicate a temperature of approximately 45 deg. C (113 deg. F), blue arrows indicate a temperature below 45 deg. C (113 deg. F).
| Item | Description |
|---|---|
| 1 | Pressure relief cap |
| 2 | Degas bottle |
| 3 | Degas bottle-to-radiator hose |
| 4 | Coolant pump-to-radiator supply hose |
| 5 | Degas bottle-to-coolant pump hose |
| 6 | Coolant pump |
| 7 | Coolant crossover hose assembly |
| 8 | Thermostat |
| 9 | Radiator |
| 10 | Fuel cooler inlet hose |
| 11 | Fuel cooler |
| 12 | CAC inlet hose |
| 13 | CAC |
