Transmission Fluid Cooler Coolant Thermostat: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Be prepared to collect escaping fluid.

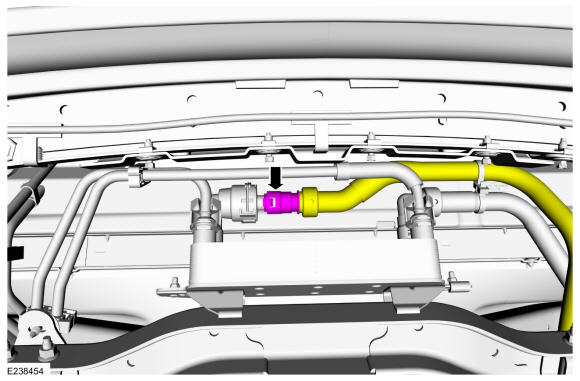

    Release the quick connect coupling and disconnect transmission fluid cooler outlet hose.

    GFD203426Courtesy of FORD MOTOR COMPANY

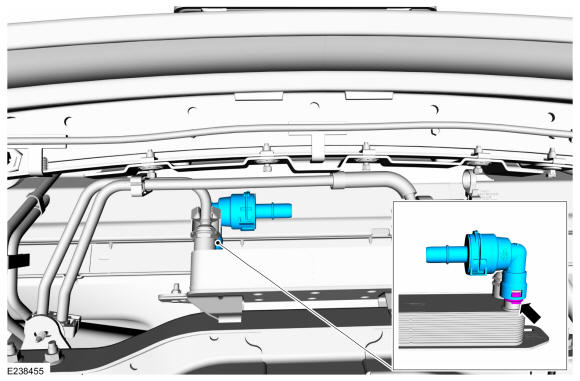

  3. Release the quick connect coupling and remove the thermostat assembly.
GFD203427Courtesy of FORD MOTOR COMPANY
