Removal And Installation: Thermostat: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

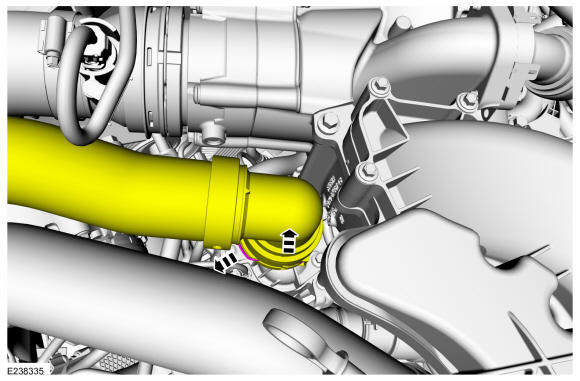

- Pull the upper radiator hose spring clip until the end of the clip is in the detent on the quick connect coupling and disconnect the upper radiator hose.

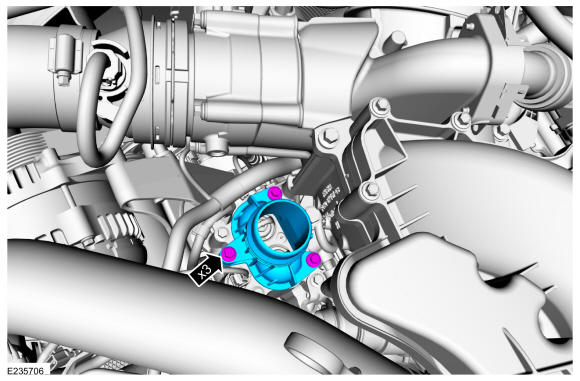

- Remove the bolts and the coolant outlet connection.
Torque: 89 lb.in (10 Nm)

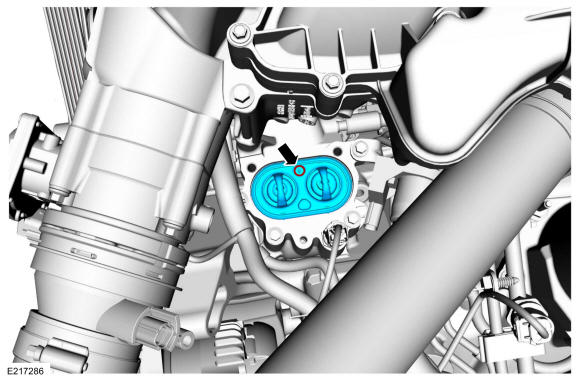

NOTE: During installation verify the thermostat vent hole is at the 12 o'clock position. - Remove the thermostat assembly.
