Cooling Fan: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the upper cooling fan shroud. Refer to: Cooling Fan Upper Shroud .

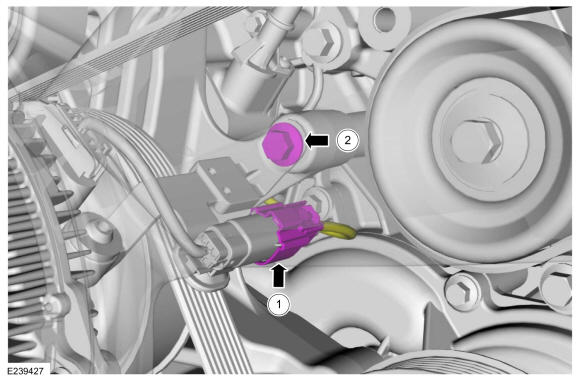

1. Disconnect the cooling fan clutch electrical connector.
2. Remove the bracket mounting bolt.
  Torque: 18 lb.ft (24 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: The component has a right-hand thread.

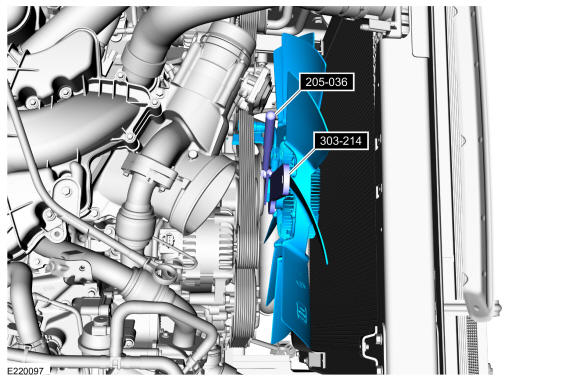

Using the special tools, remove the cooling fan and clutch. Use Special Service Tool: 303-214 (T83T-6312-B) Wrench, Fan Clutch Nut., 205-036 (T70P-4067-A) Wrench.

Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

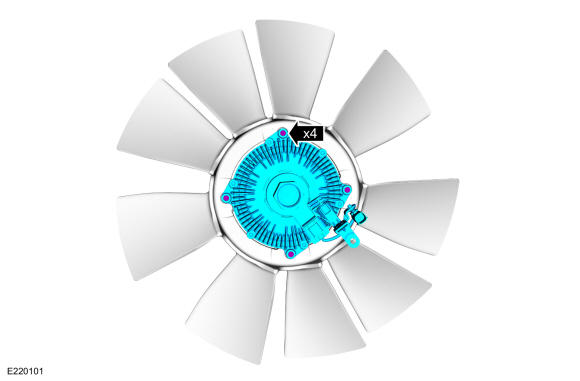

Remove the bolts and separate the cooling fan from the cooling fan clutch.

Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
