Cooling Fan Stator: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling fan. Refer to: Cooling Fan .

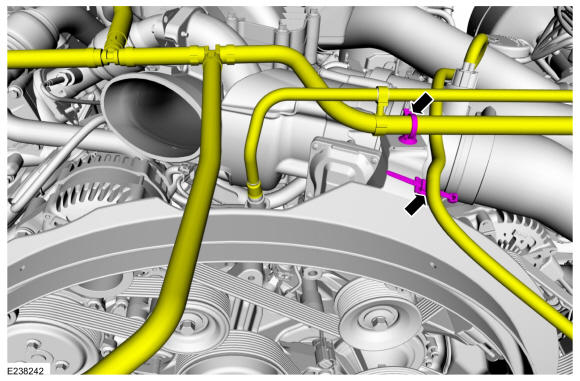

- Detach the retainers from the cooling fan stator.
-
NOTE: Rotate the cooling fan stator as necessary to release the cooling fan stator from the lower cooling fan shroud.

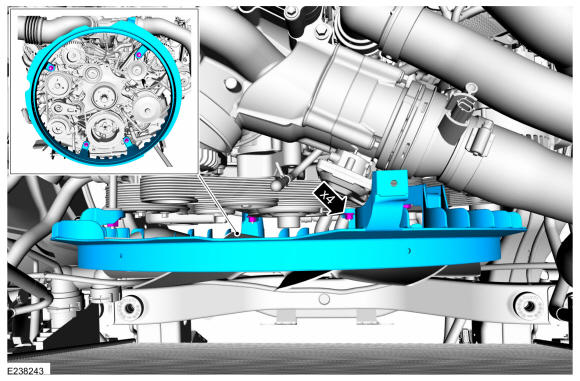

Remove the nuts and the cooling fan stator.
Torque: 150 lb.in (17 Nm)
