Cooling Fan Lower Shroud: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the radiator. Refer to: Radiator .

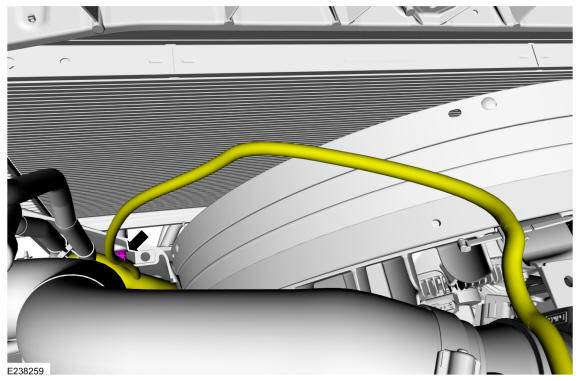

- Detach the Charge Air Cooler Temperature (CACT) sensor wiring harness retainer from the lower cooling fan shroud.

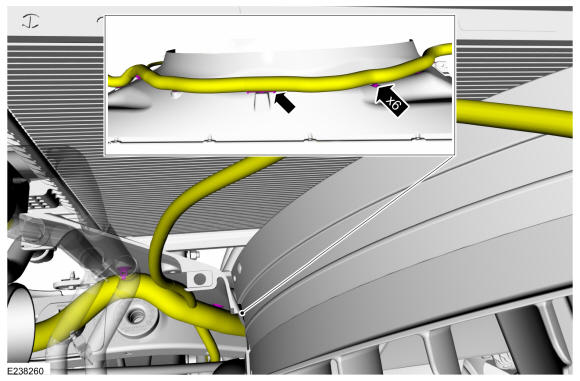

- Detach the wiring harness retainers from the cooling fan shroud.
-

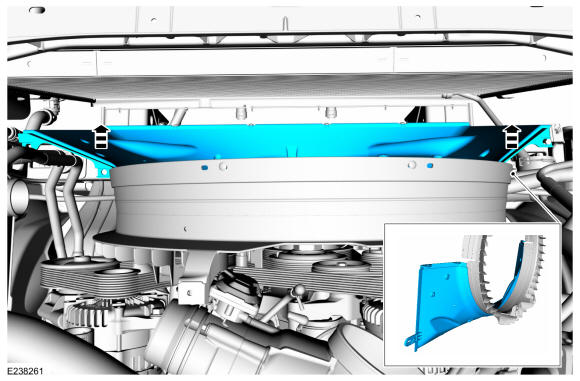

NOTE: During installation verify that the rubber stator seal is positioned fully outside the perimeter of the lower fan shroud.
Detach and remove the lower cooling fan shroud from the cooling fan stator.
