Coolant Pump: Installation
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

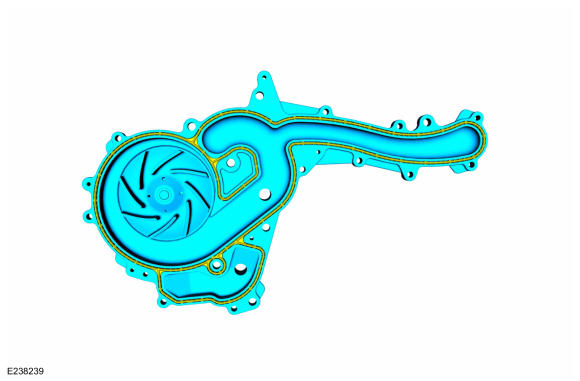

- Install a new gasket.

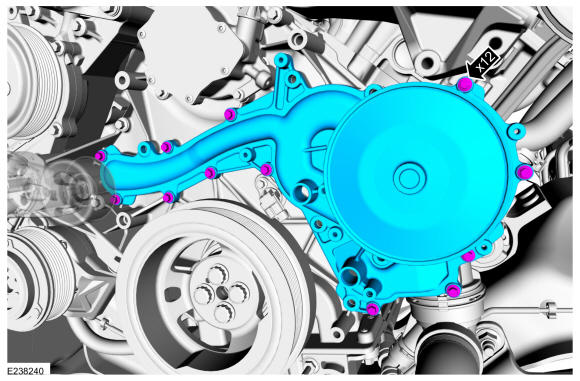

- Position the coolant pump and install the small bolts. Tighten the bolts evenly.
Torque: 89 lb.in (10 Nm)

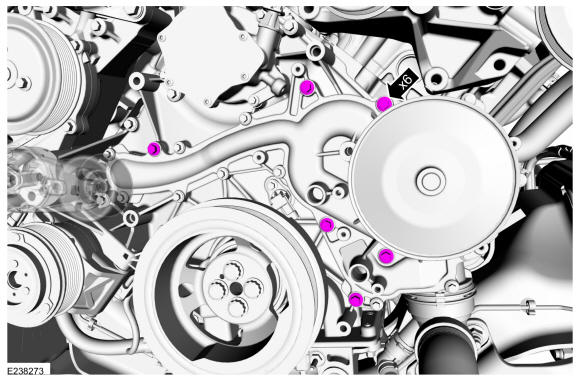

- Install the large bolts.
Torque: 18 lb.ft (24 Nm)

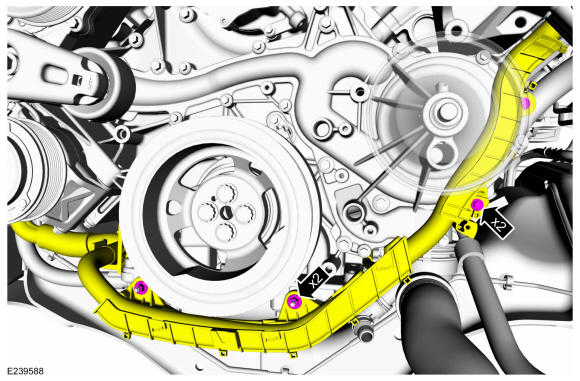

- Position the battery cable bracket and install the bolts and nuts.
Torque: 106 lb.in (12 Nm)

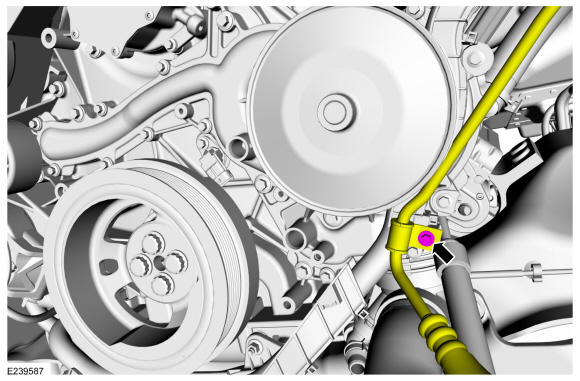

- Install the power steering pressure hose bracket screw.
Torque: 44 lb.in (5 Nm)
- Lubricate the O-ring seal with clean engine coolant.
Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

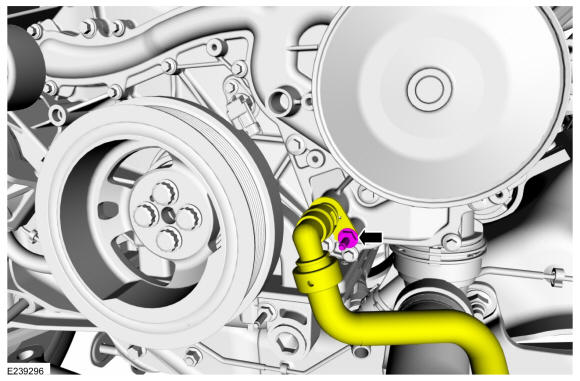

- Connect the transmission oil cooler outlet hose and install the stud bolt.
Torque: 89 lb.in (10 Nm)
- Lubricate the O-ring seal with clean engine coolant.
Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

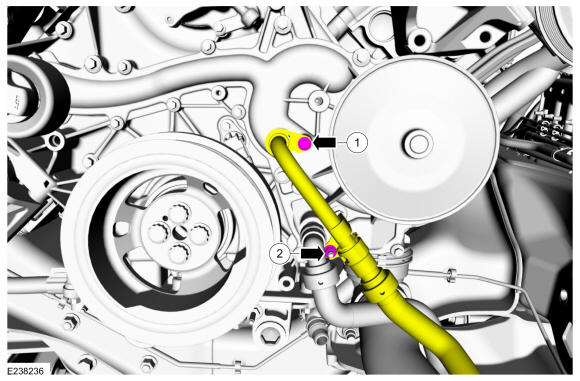

- Connect the transmission oil cooler inlet hose and install the bolt and nut.
Torque:
1: 89 lb.in (10 Nm)
2: 115 lb.in (13 Nm)

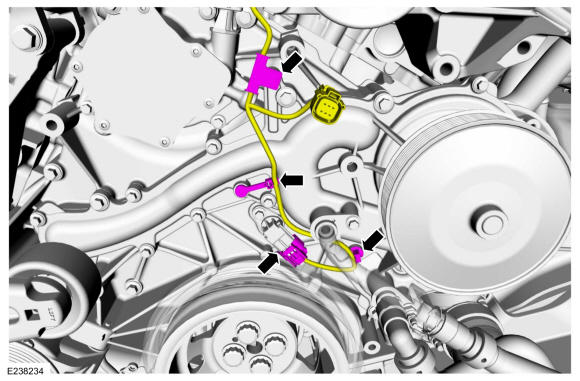

- Connect the CMP sensor electrical connector and attach the wiring harness retainers.
- Install the cooling fan drive assembly. Refer to: Cooling Fan Drive Assembly .
- Install the cooling fan stator. Refer to: Cooling Fan Stator .NOTE: Evaluate the cooling system condition before filling the cooling system. Failure to follow these instructions can damage the engine.
- Evaluate the cooling system condition. Refer to: Cooling System Condition Evaluation .
