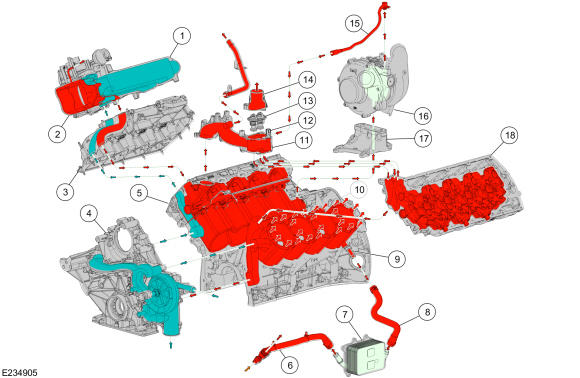

Engine Cooling System Exploded View
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | EGR cooler |
| 2 | EGR valve and bypass assembly |
| 3 | RH valve cover |
| 4 | Front cover assembly |
| 5 | RH cylinder head |
| 6 | Oil cooler outlet hose |
| 7 | Engine oil cooler |
| 8 | Oil cooler inlet hose |
| 9 | Oil cooler inlet connector |
| 10 | Cylinder block |
| 11 | Coolant crossover manifold assembly |
| 12 | ECT sensor |
| 13 | Thermostat assembly |
| 14 | Coolant outlet connector |
| 15 | Turbocharger coolant outlet hose |
| 16 | Turbocharger |
| 17 | Turbocharger housing support |
| 18 | LH cylinder head |
