Reductant Injector: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

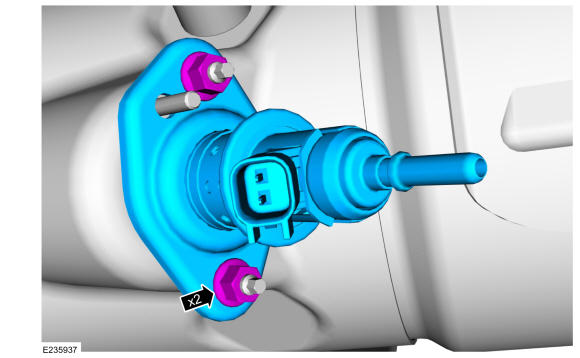

- Install the reductant injector gasket. Install the reductant injector, then install and tighten the reductant injector retaining nuts.
Torque: 106 lb.in (12 Nm)

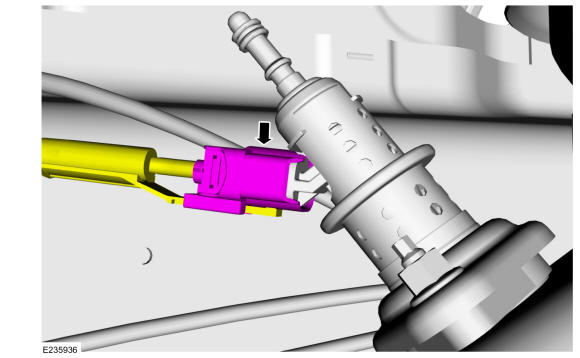

- Connect electrical connector to the reductant injector.

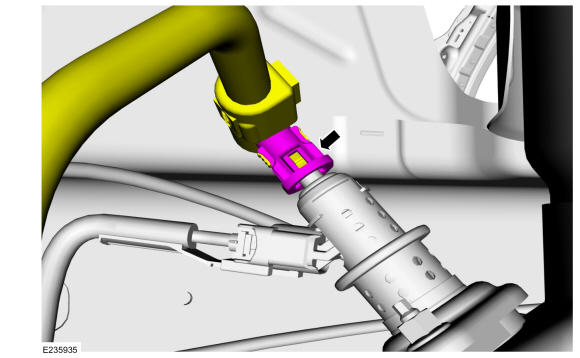

- Connect the reductant pressure line connector straight on the reductant injector nipple.
-
NOTE: Make sure the reductant pressure line heat shield is installed back in position. Failure to do so can cause system overheating or freeze up.

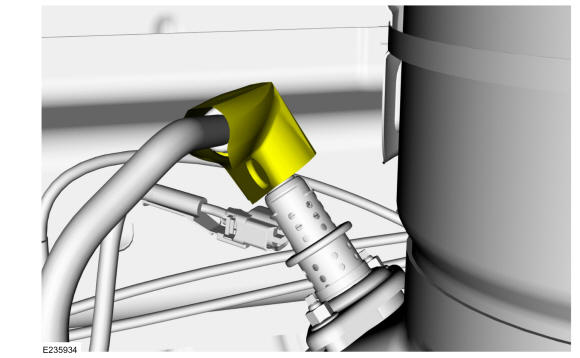

Install the reductant injector reductant pressure line heat shield.
