Exhaust Gas Recirculation (EGR) Valve: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the mating faces are clean and free of foreign material.

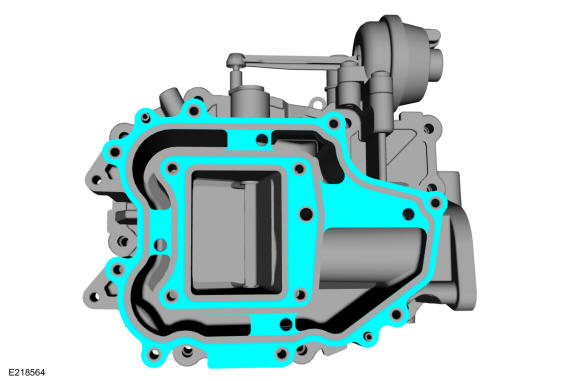

Clean the mating surfaces. Install a new EGR valve gasket.

Courtesy of FORD MOTOR COMPANY
Install the EGR valve, the EGR valve the bolts, tighten in the 4 stages and in the sequence shown:
Torque: Bolts 1-12: Stage 1: 106 lb.in (12 Nm) | Stage 2: 142 lb.in (16 Nm) Bolts 1-4: 142 lb.in (16 Nm) Bolt 13: Stage 3: 106 lb.in (12 Nm) | Stage 4: 90 deg.

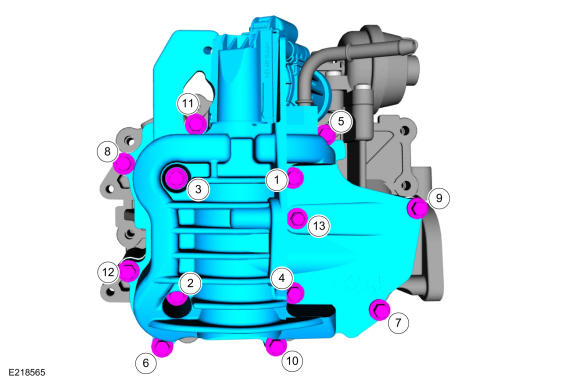

Fig 1: EGR Valve Component Location W/ Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the new EGR valve inlet tube gaskets.

Courtesy of FORD MOTOR COMPANY

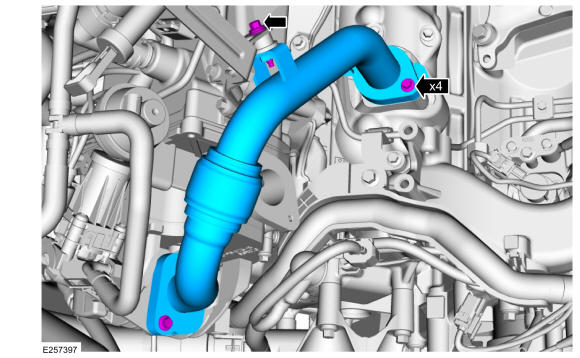

- Install the EGR valve inlet tube and the bolts.
  Torque: Tighten the bolts at the exhaust manifold. : 89 lb.in (10 Nm) Tighten the bolts at the EGR valve inlet tube to bracket bolt. : 89 lb.in (10 Nm) Tighten the bolts at the EGR cooler. : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

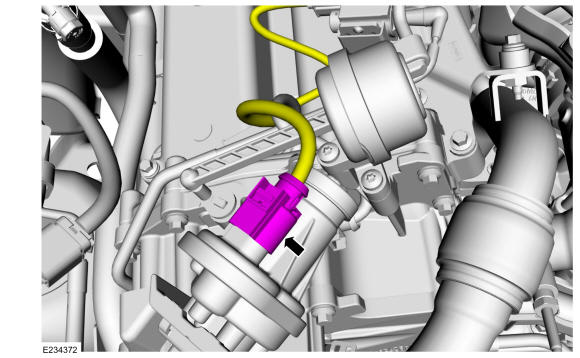

Connect the EGR valve electrical connector.

Courtesy of FORD MOTOR COMPANY

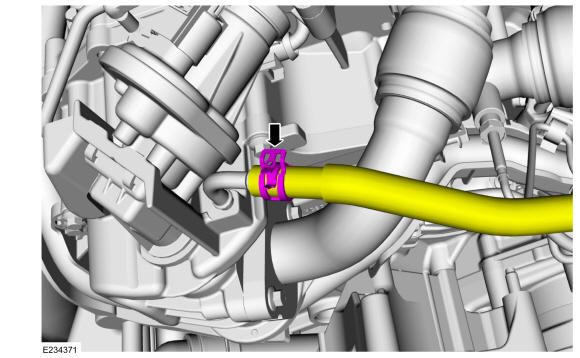

Connect the EGR valve coolant vent hose to the EGR valve. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
NOTE: Evaluate the cooling system condition before filling the engine cooling system. Failure to follow these instructions can result in damage to the engine.

Evaluate the cooling system condition. Refer to: Engine Cooling System Condition Evaluation .
Initiate EGR valve learning cycle after EGR replacement in the following sequence.
- Turn the ignition key to the KOEO for 10 seconds.
- Turn the ignition key to the OFF position for 30 seconds.
