Exhaust Gas Recirculation (EGR) Cooler: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling And Bleeding .
  2. Remove the air cleaner outlet pipe and the air cleaner. Refer to: Air Cleaner Outlet Pipe . Refer to: Air Cleaner .
  3. Remove the upper intake manifold. Refer to: Upper Intake Manifold .
  4. Disconnect the coolant hose. Refer to: Quick Release Coupling .
    GFD407995Courtesy of FORD MOTOR COMPANY
  5. Disconnect the EGR valve coolant vent hose from the EGR valve. Use the General Equipment: Hose Clamp Remover/Installer
    GFD407996Courtesy of FORD MOTOR COMPANY
  6. Disconnect the EGR valve electrical connector.
    GFD407997Courtesy of FORD MOTOR COMPANY
  7. Disconnect the electrical connector and the vacuum hoses from the EGR bypass valve solenoid. Detach the wiring harness retainers.
    GFD407998Courtesy of FORD MOTOR COMPANY

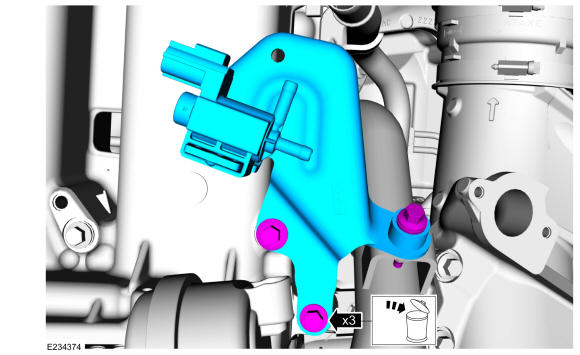

  8. Remove and discard the EGR valve inlet tube bracket bolts, then remove the EGR valve inlet tube bracket.
    GFD407999Courtesy of FORD MOTOR COMPANY
  9. Remove the RH upper sound shield retainers and position the RH upper sound shield aside.
    GFD408000Courtesy of FORD MOTOR COMPANY
  10. Detach the wire harness retainer and position the wire harness out of the way.
    GFD408001Courtesy of FORD MOTOR COMPANY
  11. Remove the engine wire harness bolts and then position the engine wire harness out of the way.
    GFD408002Courtesy of FORD MOTOR COMPANY

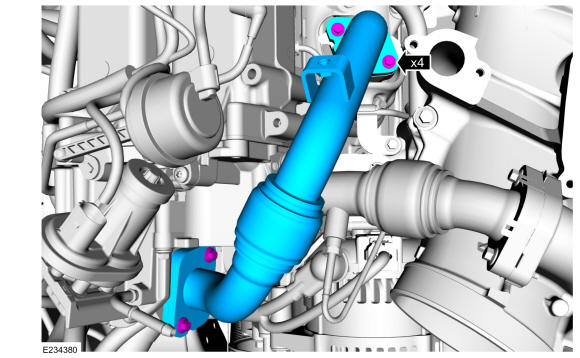

  12. Remove the bolts and the EGR valve inlet tube.
    GFD408003Courtesy of FORD MOTOR COMPANY
  13. Remove and discard the EGR valve inlet tube gaskets.
    GFD408004Courtesy of FORD MOTOR COMPANY
  14. Disconnect the EGRT (exhaust gas recirculation temperature) sensor electrical connector.
    GFD408005Courtesy of FORD MOTOR COMPANY
  15. Detach the EGRT (exhaust gas recirculation temperature) sensor electrical connector retainer and the wire harness retainer.
    GFD408006Courtesy of FORD MOTOR COMPANY
  16. Remove the EGR cooler outlet pipe bolts and the EGR cooler outlet pipe.
    GFD408007Courtesy of FORD MOTOR COMPANY

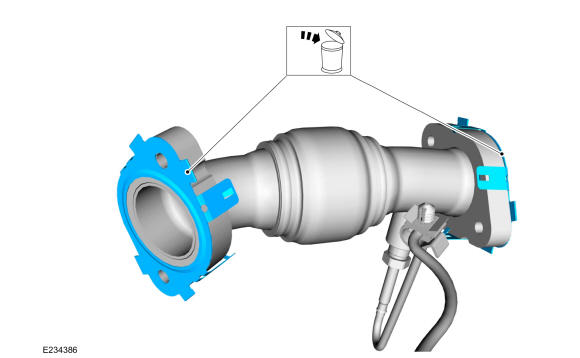

  17. Remove and discard the EGR outlet pipe gaskets.
    GFD408008Courtesy of FORD MOTOR COMPANY
    • Remove the exhaust pressure sensor assembly bracket nut.

    • Loosen the exhaust pressure sensor tube assembly flare nut and remove the exhaust pressure sensor tube assembly.

    GFD408009Courtesy of FORD MOTOR COMPANY

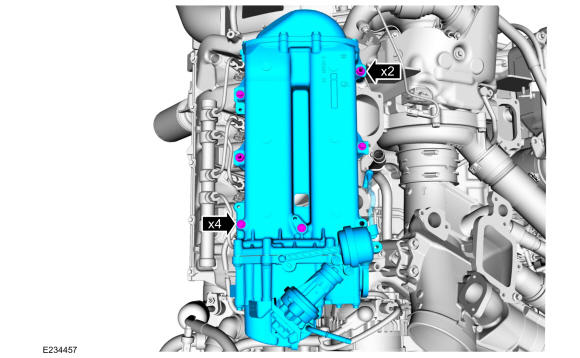

  19. Remove the bolts and then remove the EGR cooler assembly.
    GFD408010Courtesy of FORD MOTOR COMPANY

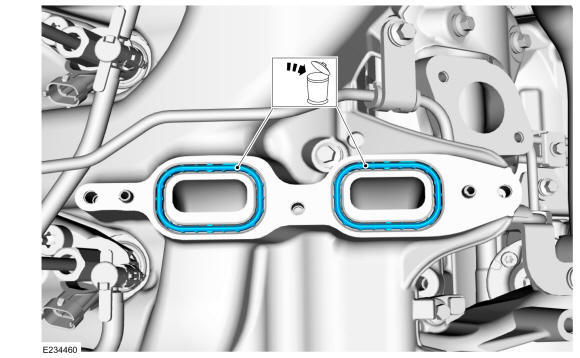

  20. Remove and discard the EGR cooler gaskets.
GFD408011Courtesy of FORD MOTOR COMPANY
