Outboard Frame Mounted Reductant Tank

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

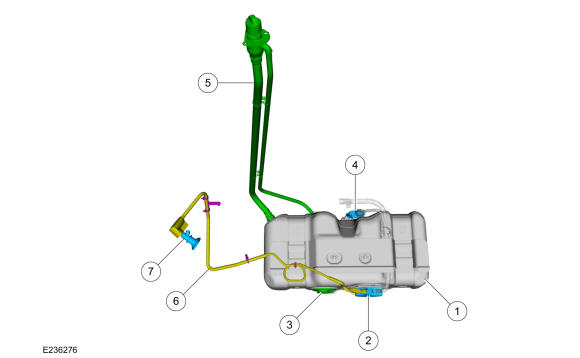

GFD407950Courtesy of FORD MOTOR COMPANY
Item Description
1 Reductant tank
2 Reductant pump and heater assembly
3 Reductant level sensor and quality module (Part of Reductant tank)
4 Reductant pump control module
5 Reductant tank filler hose
6 Reductant pressure line
7 Reductant injector
