6.7L Power Stroke Diesel
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

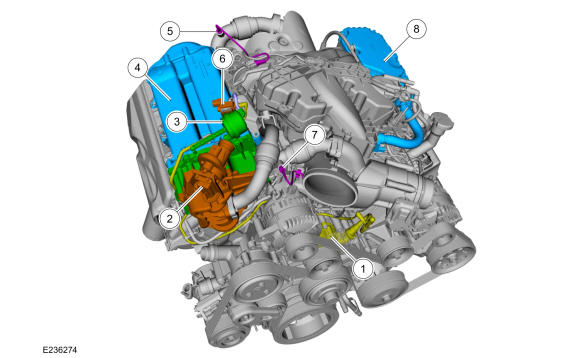

| Item | Description |
|---|---|
| 1 | Vacuum Pump |
| 2 | EGR (exhaust gas recirculation) valve |
| 3 | EGR (exhaust gas recirculation) bypass |
| 4 | EGR (exhaust gas recirculation) cooler |
| 5 | EGR (exhaust gas recirculation) cooler inlet EGRT (exhaust gas recirculation temperature) 11 sensor |
| 6 | EGR (exhaust gas recirculation) cooler bypass valve solenoid |
| 7 | EGR (exhaust gas recirculation) cooler outlet EGRT (exhaust gas recirculation temperature) 12 sensor |
8 |
Crankcase vent oil separator |
