Transmission Fluid Cooler Tubes - 6.7L Power Stroke Diesel, 6-Speed Automatic Transmission - 6R140: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new transmission fluid cooler tube assembly, mark the location and orientation of the retainers before removal.

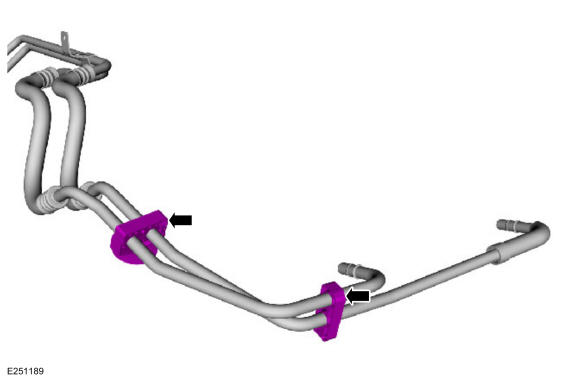

Remove the transmission fluid cooler tube assembly front retainers.

Courtesy of FORD MOTOR COMPANY

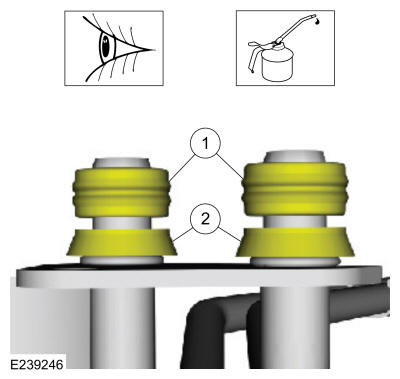

Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
2. Backing ring (7J324)
Courtesy of FORD MOTOR COMPANY
NOTE: Manipulate the transmission fluid cooler tubes as needed to install. The front part of the tubes are installed individually.

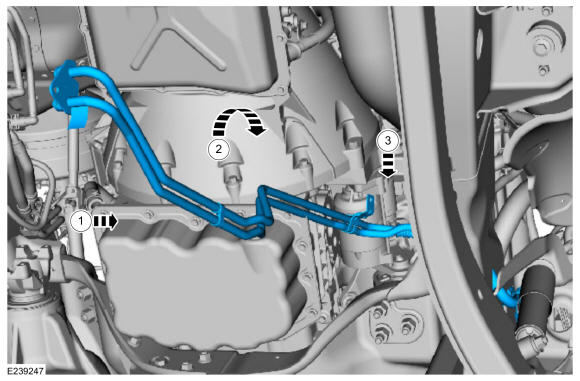

Install the transmission fluid cooler tubes.

Click here to view a video version of this procedure.

multimedia:A supplement to the article is available.

Courtesy of FORD MOTOR COMPANY
NOTE: Verify the retainers are installed in the correct previously marked orientation and position.

Install the transmission fluid cooler tube assembly front retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, make sure the spacer is installed between the transmission and the transmission fluid cooler tubes bracket.

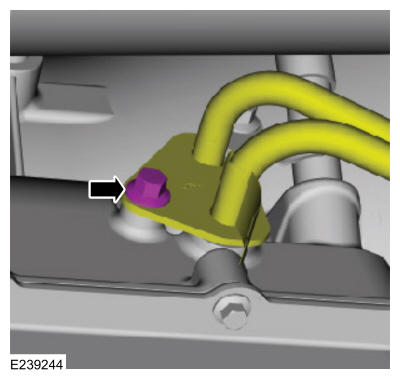

Install the transmission fluid cooler tubes-to-transmission bolt and, if equipped, the spacer.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

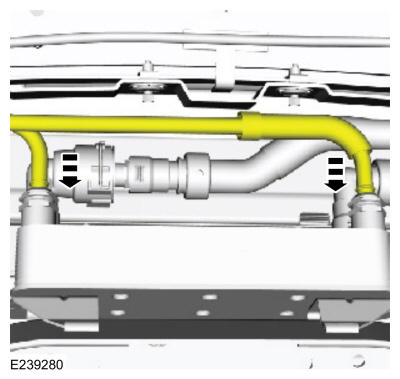

Connect the transmission fluid cooler tubes to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tubes secondary latches.

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler tubes retainer.

Courtesy of FORD MOTOR COMPANY

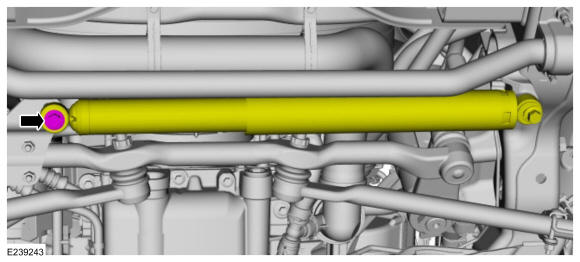

Position the steering damper and install the steering linkage damper bolt.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

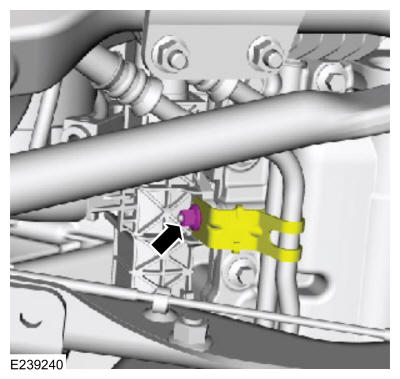

Position the transmission fluid cooler tubes bracket and install the nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the starter motor. Refer to: Starter Motor .
Install a new oil filter adapter gasket.

Courtesy of FORD MOTOR COMPANY
Install the oil filter adapter the stud bolt, and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position the wiring harness and install the wiring harness bracket nut.

Courtesy of FORD MOTOR COMPANY
Connect the oil temperature sensor and oil pressure switch electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install a new oil filter.

Courtesy of FORD MOTOR COMPANY
Check the engine oil level and adjust as necessary.
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
